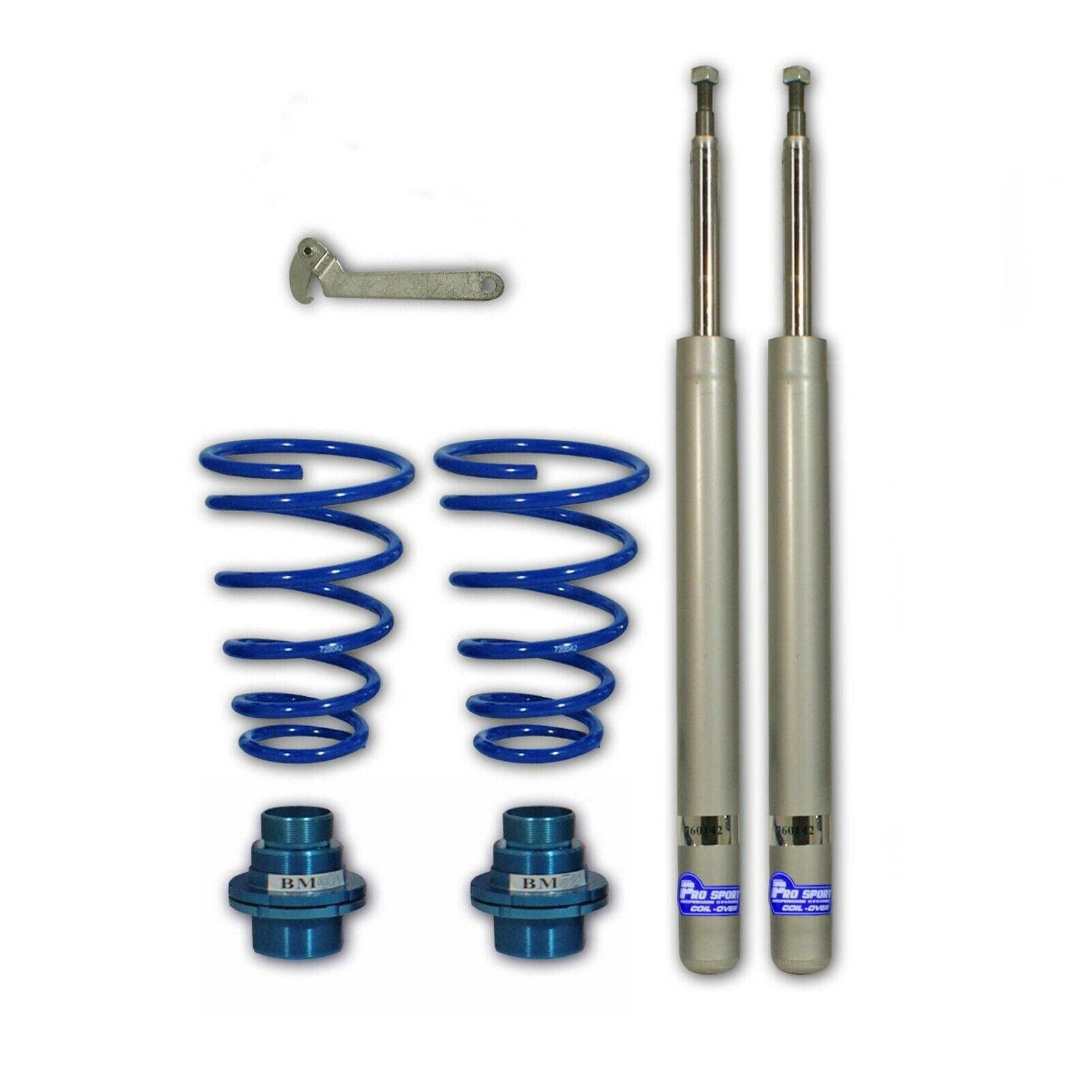

Prosport LZT-Line Coilover Kit for 5 Series Touring E34 518 520 525

Prosport LZT-Line Coilover Kit for 5 Series Touring E34 518 520 525

Product Description:

A Prosport DZT-Line Coilover Kit for your 5 Series Saloon

To Identify the correct version:

With the vehicle standing on its wheels, remove the top nut from the front shock absorber. If a bearing is visible, this will be the 14mm version. The 16mm version does not have a bearing.

If the 16mm version is fitted, we recommend changing to the 14mm type. This will improve steering feel because of the bearing and parts availability is better for the 14mm version.

This Prosport Coilover Kit will fit these BMW 5 Series Saloon (Type E34) from 1988-1996 models:

518i / 520i / 525i / 525TD/TDS

Only for vehicles with M14 / 14mm front top mount fitting

Lowering Range (mm):

Front: 40-60

Rear: 30-55

Maximum Axle Loads:

Front: 1060kg

Rear: 1260kg

Good to Know:

We recommend changing the standard 16mm top mounts to the 14mm version

These Prosport Coilovers are designed to fit on to the standard (OEM) top mounts.

No additional parts needed for installation of this Prosport Coilover Kit.

Dampers uprated by 30% to improve handling while giving a compliant ride.

Zinc-plated coilover struts for a quality finish with enhanced corrosion protection.

Durable Powder-Coat spring finish.

TUV Quality Certification.

1 year warranty.

Fitting advice

Although some of our products may seem simple to fit we do always advise that you have them installed by a qualified fitter and wait to receive the item before making arrangements for the fitting of the item. We also advise that you contact your insurance company to ensure the modifications you are planning to make to the vehicle does not void your policy. We can not be held accountable if you are not a qualified fitter and you damage the item in any way, if you have booked the fitting before receiving the item or if you do not inform your insurance company of the modification and your insurance is voided.
