Parksafe PS940 Flush Fit OEM factory look Parking Reverse sensors inc cutter

PS940 - OEM Style Rear Parking Sensor

ALSO INCLUDES SPECIAL Q-MAX CUTTING TOOL to cut the precise holes for the sensors

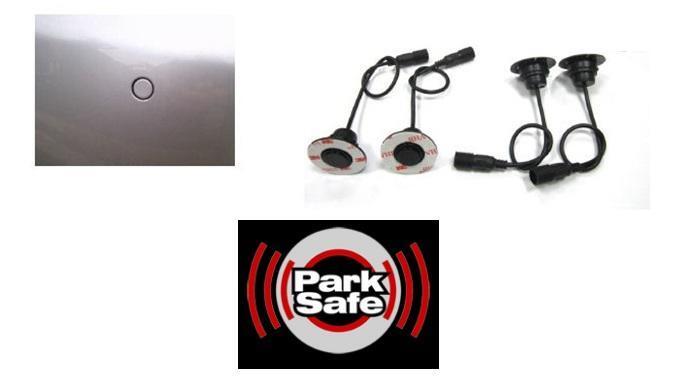

ParkSafe's latest innovation, this parking sensor is designed for a totally flush installation.

The sensor housing is adaptable for different bumper thickness to enable perfect alignment.

The sensors can be painted to match the colour of your vehicle enabling you to match the factory OEM style look.

Features

4 x Parking sensor heads

Tow bar intelligent (Dip switch 1 rear of ECU control unit)

Sensitivity adjustable

Sensor height adjustable 45cm - 55cm

Self Test Function

14.5mm sensor

4 & 2 sensor option

2 Eye - use C & D on the ECU Control Unit

Buzzer size: 42 x 16mm

Anti-hook function

The system has anti-hook function. It will not alarm if there is a Towbar and Spare tyre in the back side of the vehicle.

20cm on/off function

There is a "on/off" switch on the back of the control unit. If you choose "on", the alarming distance will be 20cm short than real distance. It is used for vehicles which has a spare tire on the back. The buzzer alarms the distance between the obstacle and the spare tire, instead of the distance between the obstacle and the bumper.

Specification

Operating Voltage Range: 12/24 volt

Ultrasonic Frequency: 40KHz

Control Working Temperature: -30c to +70c

Detection Range: 0.2 - 1.5m

Rated Current: 20-200mA

Whats included?

Buzzer

Control Box

Sensors

Drill Bit

Control Box Sensitivity Tuner
