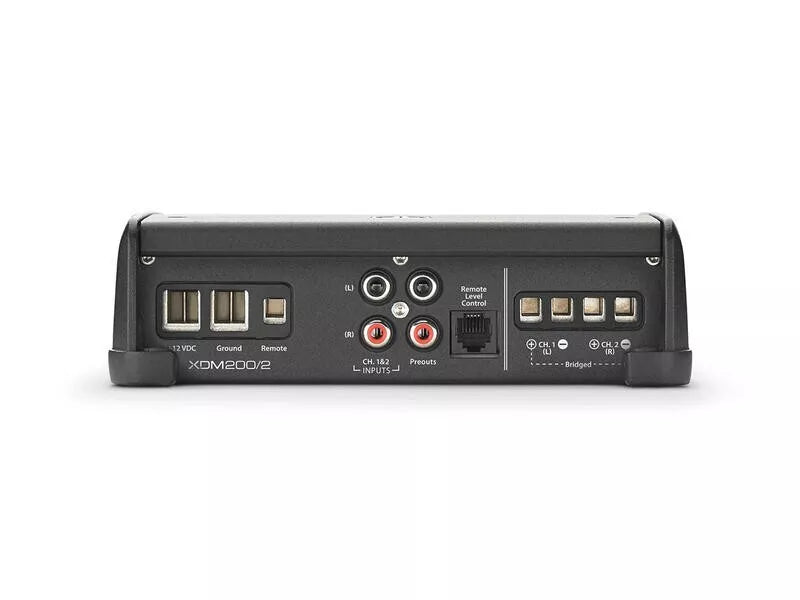

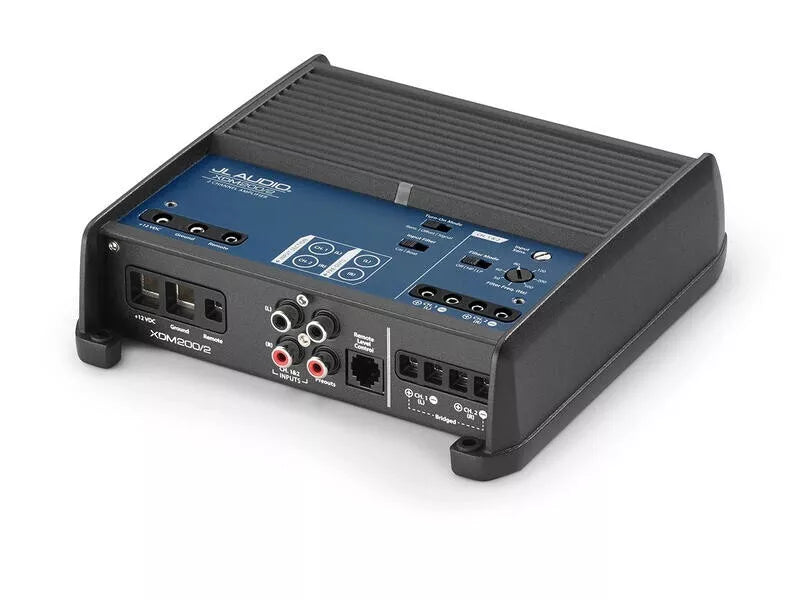

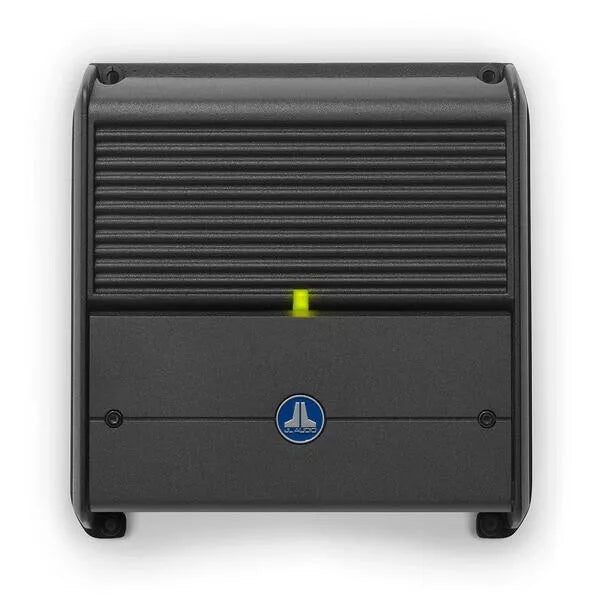

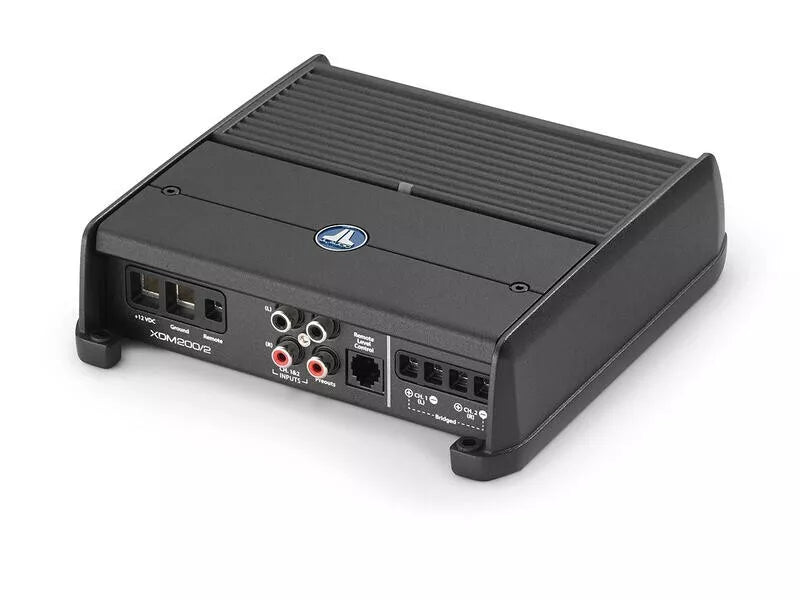

JL Audio XDM200/2 2-Channel Class D Full-Range Car / Marine Amplifier

Amplifier

2-Channel Class D Full-Range Car / Marine Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V

The tiny XDM200/2 packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for car or boat installations, the XDM200/2 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM200/2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or cockpit.

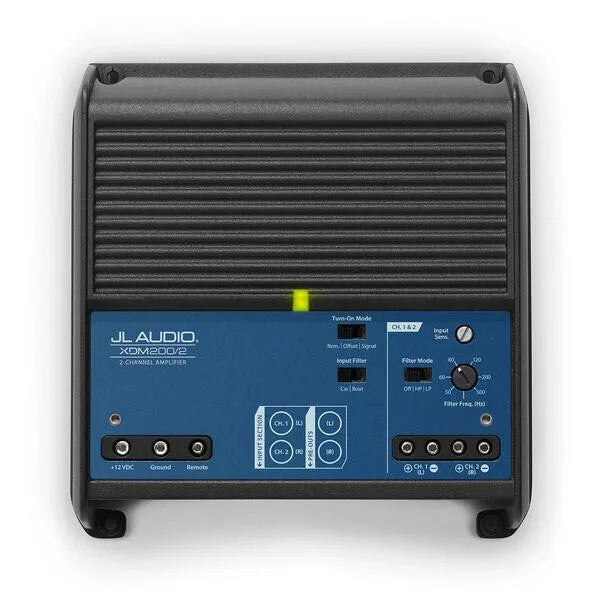

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

• Frequency Response: 12 Hz - 22 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power: > 104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W: > 84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 150 / 50 Hz
• Damping Factor @ 2 Ω: > 75 / 50 Hz
• THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: 200 mV - 4 V RMS
• Min. Copper Power / Ground Wire Gauge: 8 AWG wire
• Fuse Rating: 20 A (AFS, AGU or MaxiFuse™)
