JL Audio VX400/4i 4-Channel Class D Car Audio Full-Range Amplifier DSP- 400W RMS

Integrated Amplifier

4-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 4 @ 2 Ω / 75 W x 4 @ 4 Ω - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX400/4i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up to 200 W x 2.

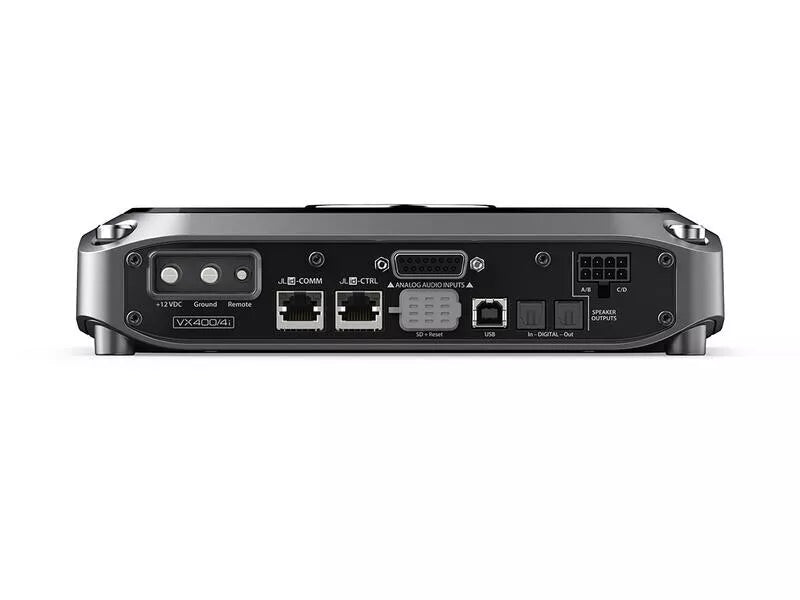

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable.

• Frequency Response: 12 Hz - 21 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power (Analog Inputs): 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs): 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs): 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs): 81 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 100 / 50 Hz
• Damping Factor @ 2 Ω: > 50 / 50 Hz
• THD+N @ Rated Power: < 1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS
• Min. Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 40 A (AFS, AGU or MaxiFuse™)
