JL Audio C6-650ct - 1" (25mm) Uprated Component Tweeter Speaker Pair

1" (25 mm) Component Tweeter

1" (25 mm) Silk Dome Component Tweeter, Single

Born from shared technologies used in our flagship C7 speakers, the C6-100ct component tweeter benefits from vast speaker design experience and advanced modeling systems of JL Audio.

Ideal for active systems, the C6-100ct component tweeter features an edge-driven, pure silk dome diaphragm for smooth, high-frequency performance with remarkable off-axis response and damping. A neodymium motor and ferrofluid cooling provide high-magnetic flux and improved reliability with extended response from a very compact motor system. Surface- and flush-mount fixtures are included to fit a wide variety of installation applications.

Passive crossover networks are not included with C6 drivers, as they are designed for active systems. Instead, we recommend a high-quality tuning digital signal processor (DSP), such as the JL Audio TwK® DSP or a VXi amplifier with built-in DSP, with a dedicated amplifier channel for each C6 loudspeaker in the system. Precise setup of equalization, delay and crossover filters will ensure optimal in-vehicle performance.

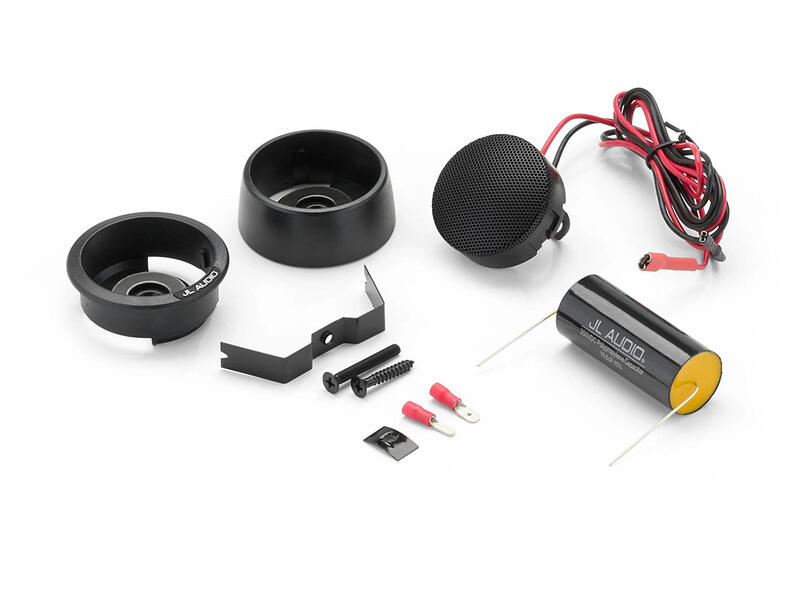

Component tweeters are sold individually and include surface- and flush-mount fixtures and hardware. One 15 ?F tweeter protection capacitor is also included.

Continuous Power Handling (RMS): 75 W

Recommended Amplifier Power (RMS): 25 - 100 W / Ch.

Nominal Impedance: 4 ?

Frequency Response: 3 kHz - 21 KHz ± 3 dB

Voice Coil Resistance (Re): 3.20 ?

Free Air Resonance (Fs): 1500 Hz

Reference Efficiency (no): 0.602%

Efficiency: 90 dB @ 1 W / 1 m; 96 dB @ 1 W / 0.5 m

Sensitivity: 93 dB @ 2.83 V / 1 m

Design Bandwidth: With 48 dB / octave filters: 3-21 kHz; With 24 dB / octave filters: 4-21 kHz; With 12 dB / octave filters: 5-21 kHz
