JL Audio

JL Audio 8" W7 SUBWOOFER 500W @ 3 OHM ANNIVERSARY EDITION JL8W7AE

JL Audio 8" W7 SUBWOOFER 500W @ 3 OHM ANNIVERSARY EDITION JL8W7AE

Regular price £545.99 GBP
Regular price Sale price £545.99 GBP
Sale Sold out
Tax included.

8" W7 SUBWOOFER 500W @ 3 OHM ANNIVERSARY EDITION

JL8W7AE

10th Anniversary Edition - W7 8-inch Subwoofer (500 W, 3 Ω)

This Subwoofer has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch Subwoofers.

The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. (28.3 l) ported enclosure.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

  • Satin-Black Powder coated Baskets
  • Bright Anodized Surround Clamp Ring

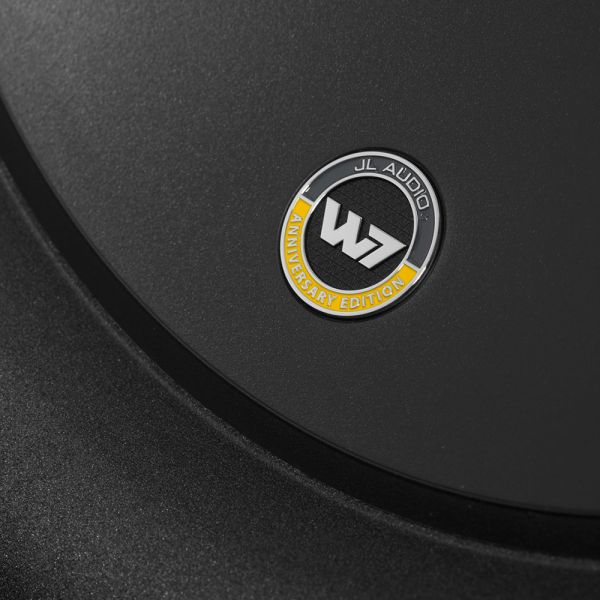

  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label
Speaker Size (in) 8"
Style Round
Impedance (Ohms) 3
Voice Coils Single
RMS Power (W) 300
Peak Power (W) 500
Sensitivity (dB @ 1W/1m) 82.7
Frequency Response (Hz) N/A
Features DMA Optimised Motor
W Cone Assembly
Elevated Frame Cooling
FCAM™ Cone Attach Method
OverRoll™ Surround Design
Radially Cross-Drilled Pole-Piece
Engineered Lead-Wire System
Constructed In USA
Height (cm) 21.6
Width (cm) 21.6
Depth (cm) 20.9
Protrusion (cm) 3.6
Mounting Depth (cm) 17.3
Mounting Hole Diameter (cm) 17.6
Grills JLSGR-8W7 (Sold Separately)
Recommended Amplifier JLJD500/1
JLRD500/1
JLXD600/1v2
Recommended Minimum Power Handling (W) 200
Recommended Maximum Power Handling (W) 500
Recommended Box Volume Sealed (Litres) 24.8
Recommended Box Volume Ported (Litres) 28.3
Brand JL Audio
EAN 699440990349
