JL Audio
JL Audio 6" W3 SUBWOOFER 150W @ 4 OHM JL6W3V3-4
JL Audio 6" W3 SUBWOOFER 150W @ 4 OHM JL6W3V3-4
Couldn't load pickup availability
6" W3 SUBWOOFER 150W @ 4 OHM
JL6W3V3-4

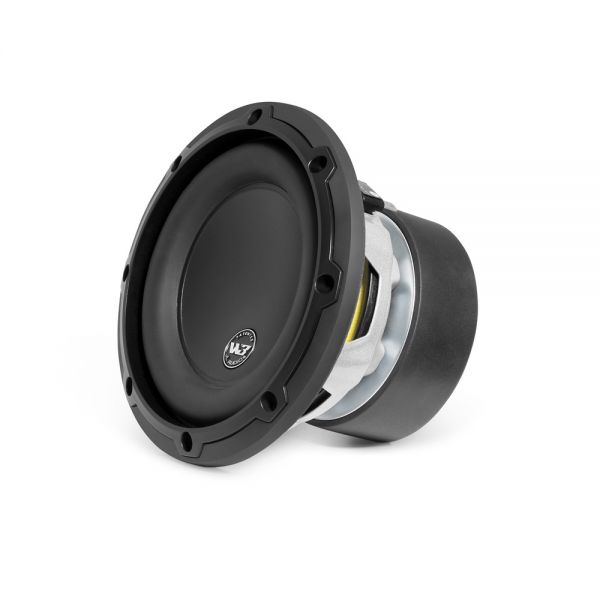

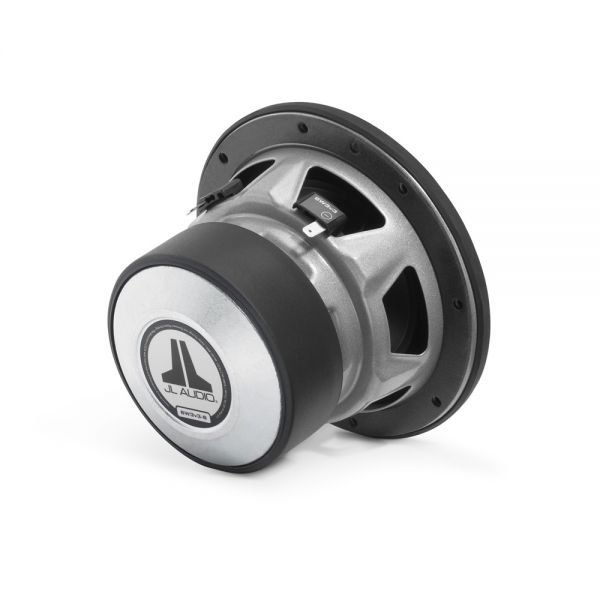

W3v3 6.5-inch Subwoofer (150 W, 4 Ω)
If you need a small-format subwoofer that really delivers in extremely small enclosures, this is where your search ends. The 6W3v3 is a true subwoofer, through-and-through. It employs the same technologies as its larger diameter brethren to deliver a whopping 0.35 in. (8.9 mm) one-way linear excursion.
The 6W3v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a tiny 0.15 cu. ft. (4.2 l) sealed enclosure, or a 0.25 cu. ft. (7.1 l) ported enclosure.
| Speaker Size (in) | 6" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 100 |
| Peak Power (W) | 150 |
| Sensitivity (dB @ 1W/1m) | 80.49 |
| Frequency Response (Hz) | N/A |

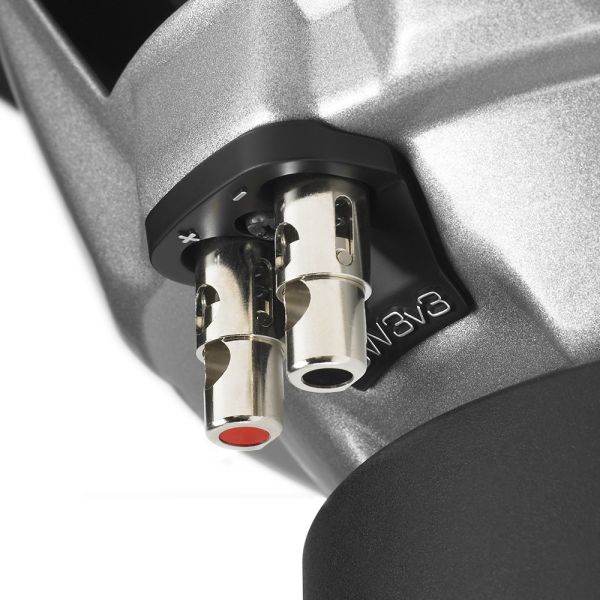

| Features | DMA Optimised Motor Elevated Frame Cooling FCAM™ Cone Attach Method Vented Reinforcement Collar Insert Moulded Sub-Assembly Engineered Lead-Wire System Customisable Trim Ring Constructed In USA |
| Height (cm) | 17.4 |
| Width (cm) | 17.4 |
| Depth (cm) | 12.8 |
| Protrusion (cm) | 2 |
| Mounting Depth (cm) | 10.8 |
| Mounting Hole Diameter (cm) | 14 |
| Grills | JLSGRU-6 (Sold Separately) |
| Recommended Amplifier | JLJD250/1 JLMX300/1 |
| Recommended Minimum Power Handling (W) | 50 |
| Recommended Maximum Power Handling (W) | 150 |
| Recommended Box Volume Sealed (Litres) | 4.2 |
| Recommended Box Volume Ported (Litres) | 7.1 |
| Brand | JL Audio |
| EAN | 699440990233 |
