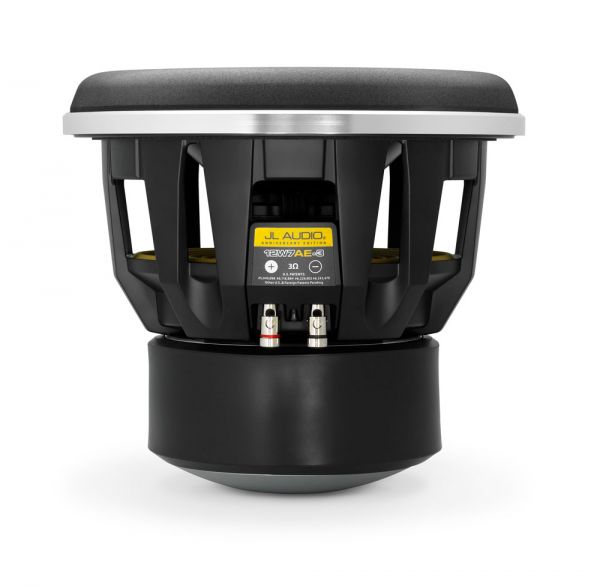

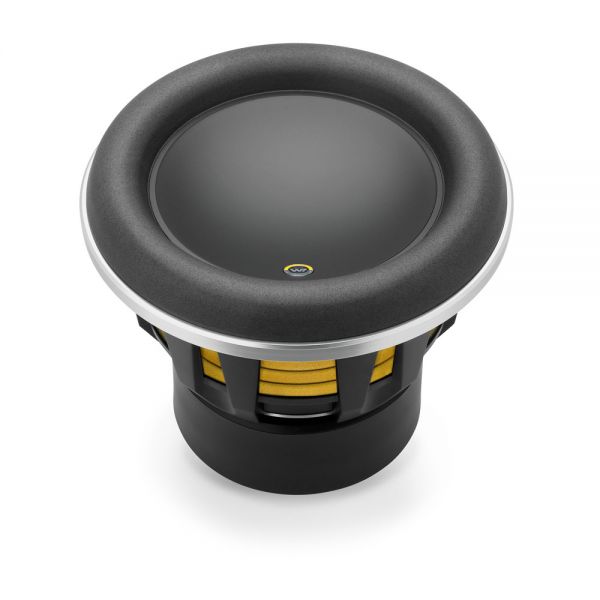

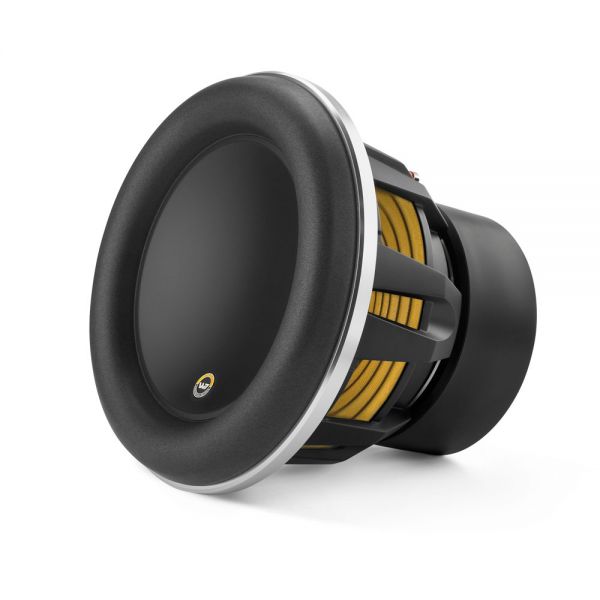

JL Audio 12" W7 SUBWOOFER 1000W @ 3 OHM ANNIVERSARY EDITION JL12W7AE
JL Audio 12" W7 SUBWOOFER 1000W @ 3 OHM ANNIVERSARY EDITION JL12W7AE
12" W7 SUBWOOFER 1000W @ 3 OHM ANNIVERSARY EDITION
JL12W7AE
10th Anniversary Edition - W7 12-inch Subwoofer (1000 W, 3 Ω)
The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.
This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
- Satin-Black Powder coated Baskets
- Bright Anodized Surround Clamp Ring

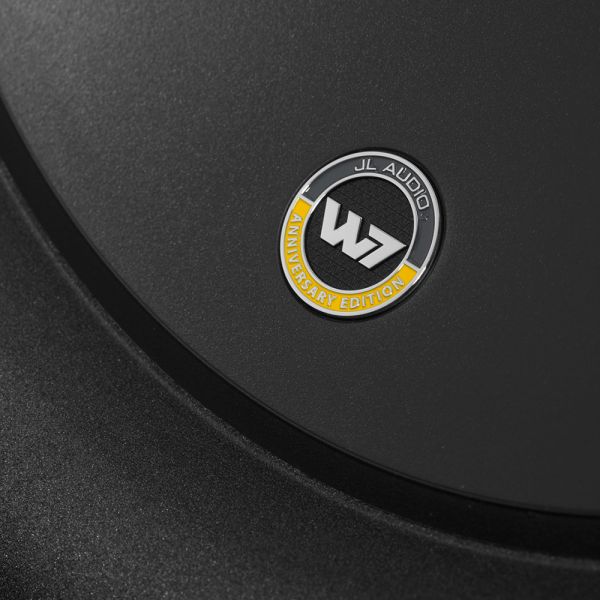

- Anniversary Edition Cone Badge
- Anniversary Edition Terminal Label
Speaker Size (in) | 12" |
---|---|
Style | Round |
Impedance (Ohms) | 3 |
Voice Coils | Single |
RMS Power (W) | 750 |
Peak Power (W) | 1000 |
Sensitivity (dB @ 1W/1m) | 86.2 |
Frequency Response (Hz) | N/A |
Features | DMA Optimised Motor W Cone Assembly Elevated Frame Cooling FCAM™ Cone Attach Method OverRoll™ Surround Design Radially Cross-Drilled Pole-Piece Engineered Lead-Wire System Constructed In USA |
Height (cm) | 31.8 |
Width (cm) | 31.8 |
Depth (cm) | 27.7 |
Protrusion (cm) | 3.6 |
Mounting Depth (cm) | 24.1 |
Mounting Hole Diameter (cm) | 26.7 |
Grills | JLSGR-12W7 (Sold Separately) |
Recommended Amplifier | JLXD1000/1v2 JLHD750/1 JL600/1v3 |
Recommended Minimum Power Handling (W) | 400 |
Recommended Maximum Power Handling (W) | 1000 |
Recommended Box Volume Sealed (Litres) | 38.94 |
Recommended Box Volume Ported (Litres) | 49.6 |
Brand | JL Audio |
EAN | 699440996136 |
