JL Audio

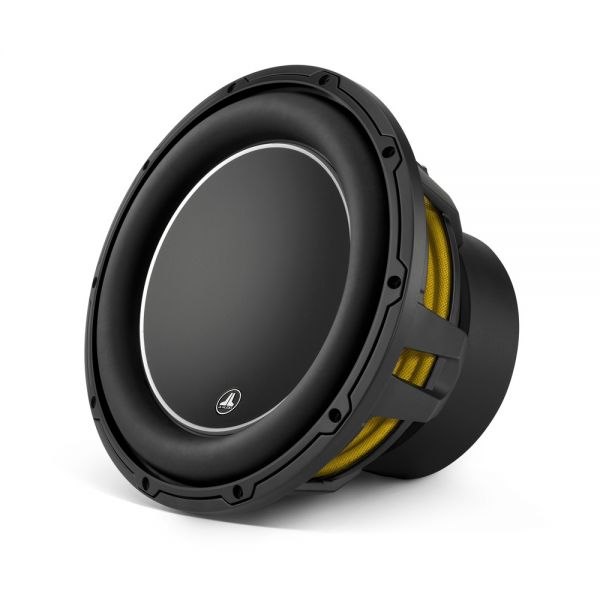

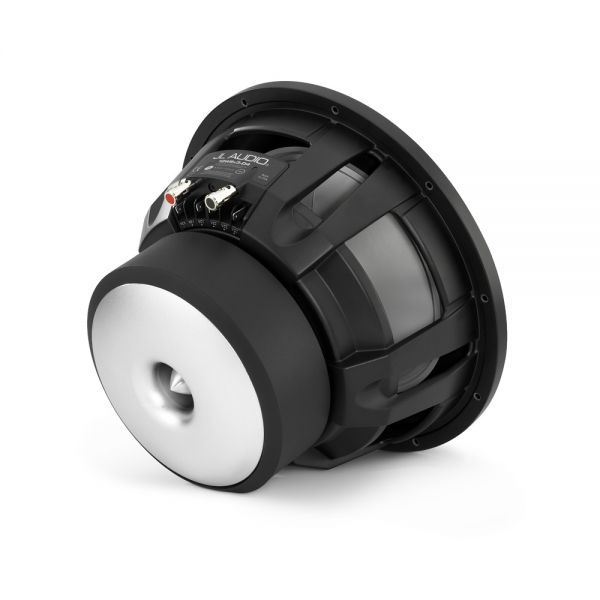

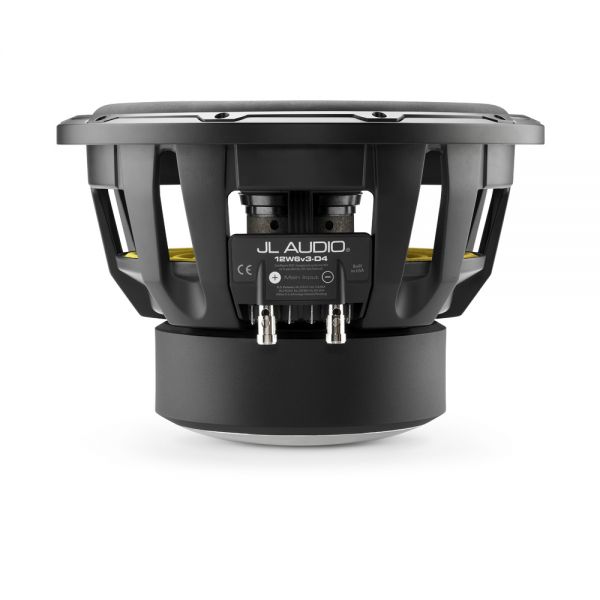

JL Audio 12" W6 SUBWOOFER 600W DUAL 4 OHM JL12W6V3-D4
JL Audio 12" W6 SUBWOOFER 600W DUAL 4 OHM JL12W6V3-D4
Couldn't load pickup availability
12" W6 SUBWOOFER 600W DUAL 4 OHM
JL12W6V3-D4
W6v3 12-inch Subwoofer (600 W, dual 4 Ω voice coils)
If you are seeking intensely powerful sub-bass that compromises nothing in terms of sound quality, the 12W6v3 is your ultimate ally. This highly advanced Subwoofer offers several technologies shared with the flagship W7AE subwoofers to provide powerful advantages in motor linearity and suspension behaviour. These combine with a very efficient cooling circuit to deliver reduced distortion and outstanding dynamic balance.
The 12W6v3 is best used with amplifier power in the 200W - 600W range and is optimized to operate in a sealed enclosure with only 1.0 cu. ft. (28.3 l) of air space, or a 1.3 cu. ft. (36.8 l) ported enclosure.
Greater excursion capability and higher power handling distinguish it from our 12W3v3 12-inch Subwoofer, allowing for higher output. Dual 4 Ω voice coils permit deploying the W6v3 as a 2 Ω or 8 Ω driver.
Speaker Size (in) | 12" |
---|---|
Style | Round |
Impedance (Ohms) | Dual 4 |
Voice Coils | Dual |
RMS Power (W) | 400 |
Peak Power (W) | 600 |
Sensitivity (dB @ 1W/1m) | 85.4 |
Frequency Response (Hz) | N/A |
Features | DMA Optimised Motor W Cone Assembly Elevated Frame Cooling FCAM™ Cone Attach Method Pole-Vent Airflow Control Terminal Jumper System Engineered Lead-Wire System Customisable Trim Ring Constructed In USA |
Height (cm) | 31.8 |
Width (cm) | 31.8 |
Depth (cm) | 21.6 |
Protrusion (cm) | 2.5 |
Mounting Depth (cm) | 19.1 |
Mounting Hole Diameter (cm) | 28 |
Grills | JLSGR-12W6 (Sold Separately) |
Recommended Amplifier | JLRD500/1 JLXD600/1v2 JL600/1v3 |
Recommended Minimum Power Handling (W) | 200 |
Recommended Maximum Power Handling (W) | 600 |
Recommended Box Volume Sealed (Litres) | 28.3 |
Recommended Box Volume Ported (Litres) | 36.8 |
Brand | JL Audio |
EAN | 699440996204 |
