12" W3 SUBWOOFER 500W @ 2 OHM
JL12W3V3-2

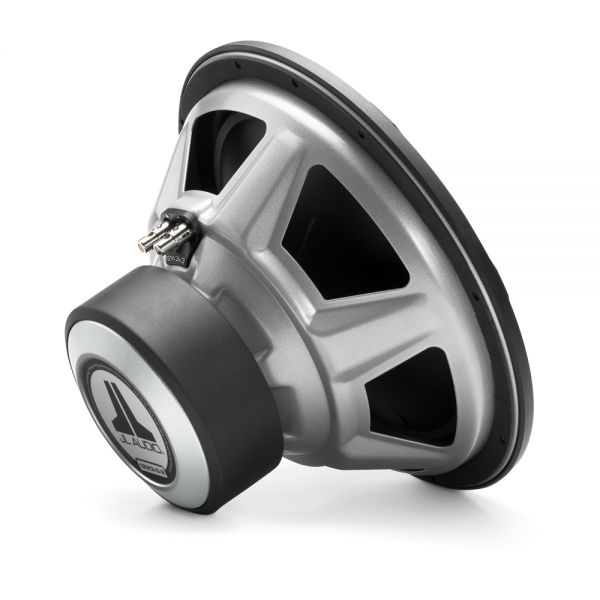

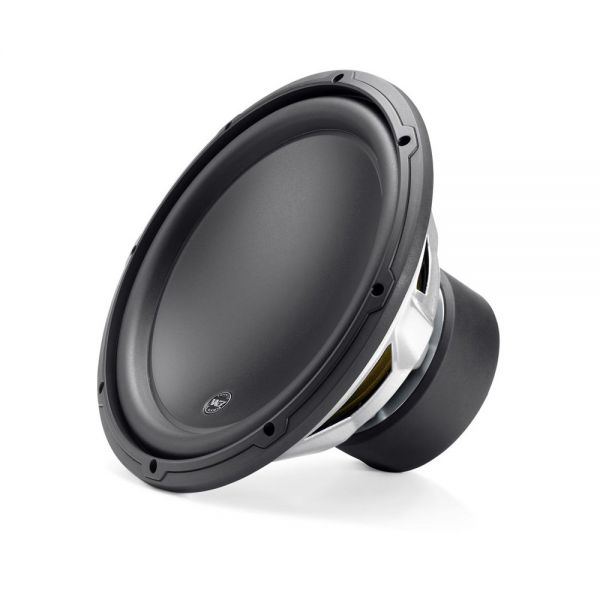

W3v3 12-inch Subwoofer (500 W, 2 Ω)
This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.
The 12W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
| Speaker Size (in) | 12" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 2 |
| Voice Coils | Single |
| RMS Power (W) | 300 |
| Peak Power (W) | 500 |
| Sensitivity (dB @ 1W/1m) | 87.15 |
| Frequency Response (Hz) | N/A |
| Features | DMA Optimised Motor Elevated Frame Cooling FCAM™ Cone Attach Method Vented Reinforcement Collar Insert Moulded Sub-Assembly Engineered Lead-Wire System Customisable Trim Ring Constructed In USA |
| Height (cm) | 31.8 |
| Width (cm) | 31.8 |
| Depth (cm) | 18.9 |
| Protrusion (cm) | 2 |
| Mounting Depth (cm) | 16.9 |
| Mounting Hole Diameter (cm) | 28.1 |

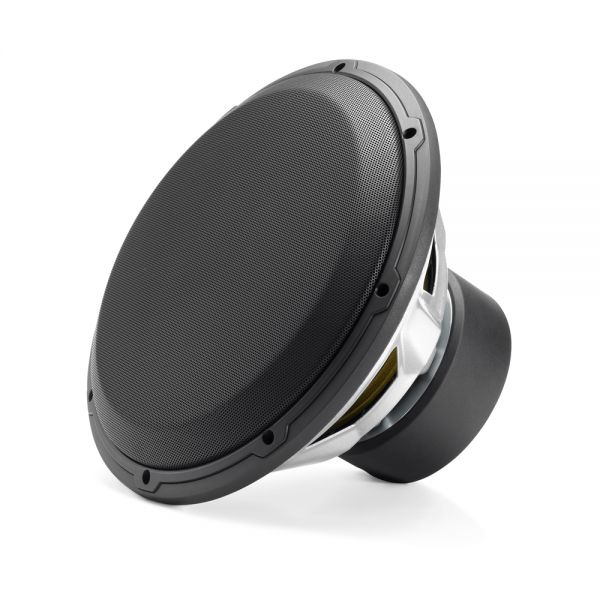

| Grills | JLSGRU-12 (Sold Separately) |
| Recommended Amplifier | JLJD500/1 JLRD500/1 JLMX500/1 |
| Recommended Minimum Power Handling (W) | 150 |
| Recommended Maximum Power Handling (W) | 500 |
| Recommended Box Volume Sealed (Litres) | 35.4 |
| Recommended Box Volume Ported (Litres) | 49.6 |
| Brand | JL Audio |
| EAN | 699440996112 |
