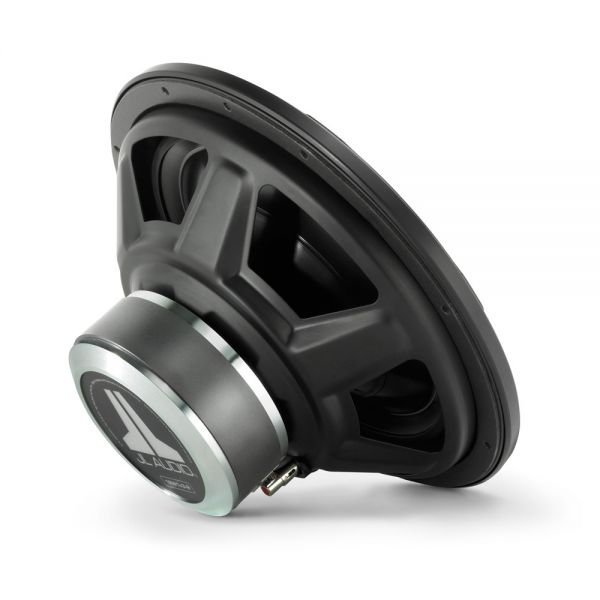

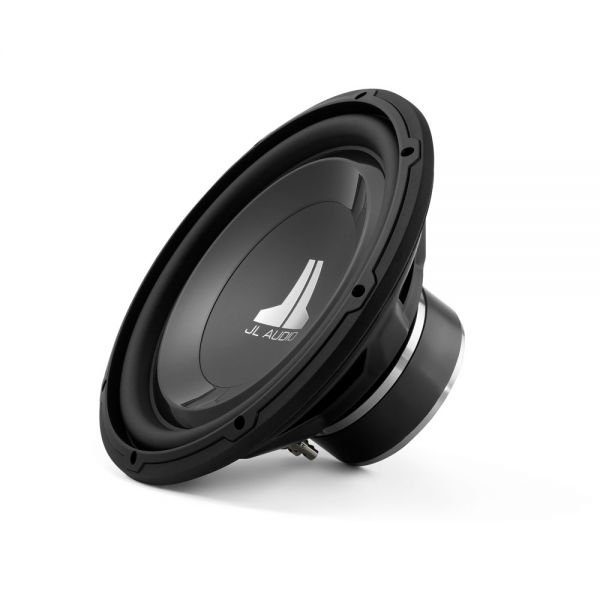

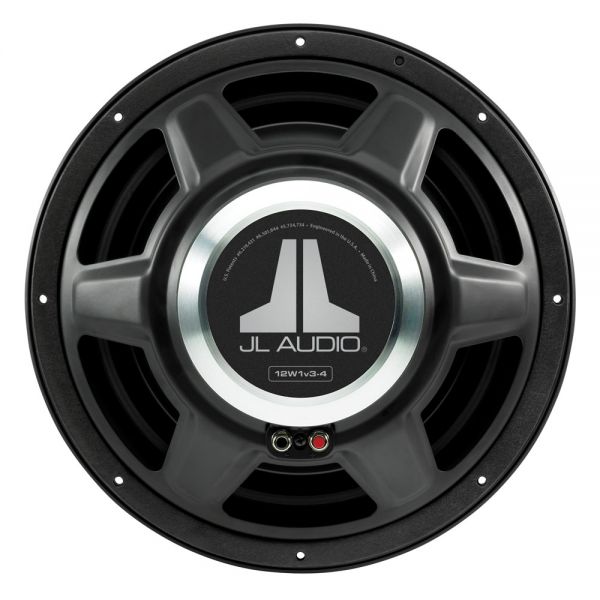

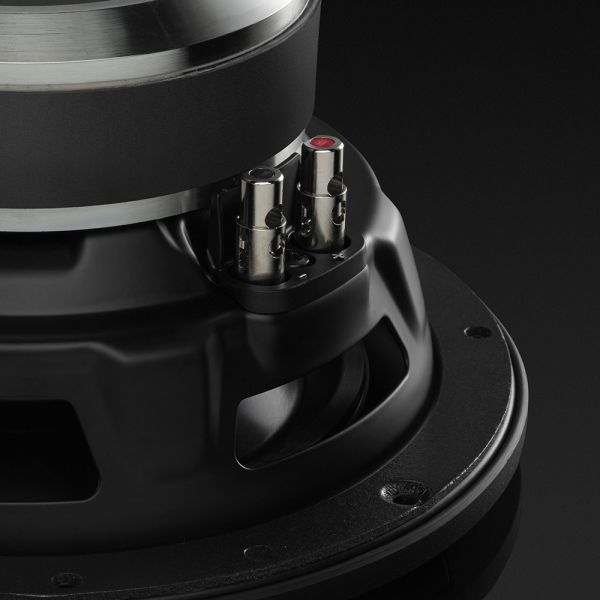

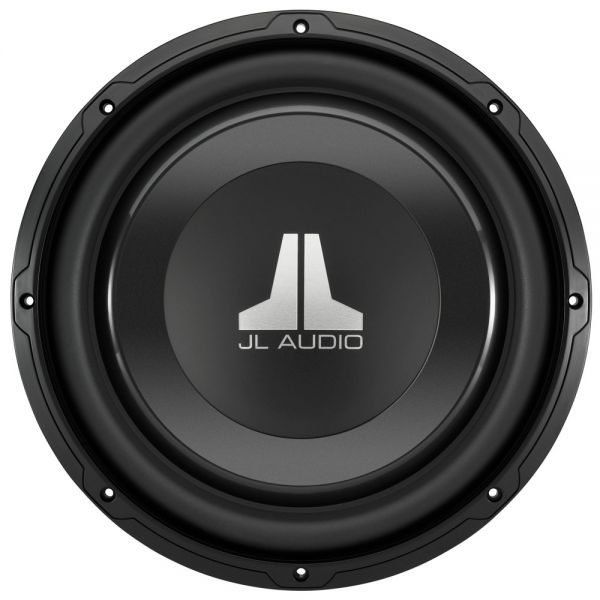

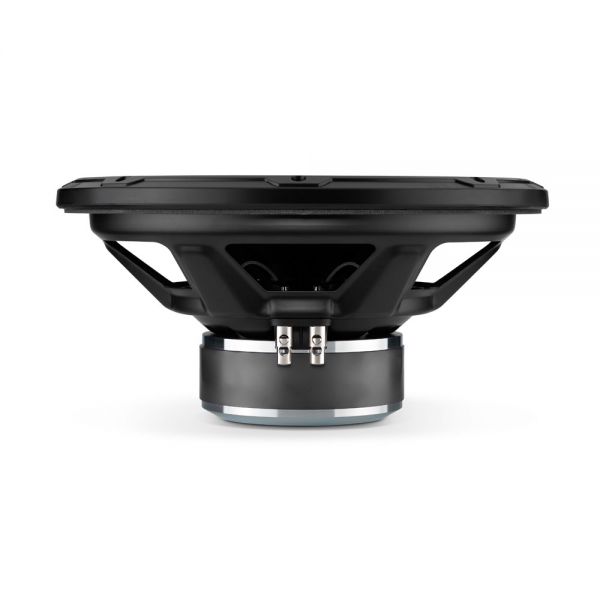

JL Audio 12" W1 SUBWOOFER 300W @ 2 OHM JL12W1V3-2

JL Audio 12" W1 SUBWOOFER 300W @ 2 OHM JL12W1V3-2

Regular price £229.99 GBP
Regular price Sale price £229.99 GBP
Sale Sold out
Tax included.

12" W1 SUBWOOFER 300W @ 2 OHM

JL12W1V3-2

W1v3 12-inch Subwoofer (300 W, 2 Ω)

The 12W1v3 is a lightweight 12-inch driver with excellent performance capabilities at moderate power levels. It features moderate mounting depth with no pole-vent, so the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.

The 12W1v3-2 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 1.10 cu. ft. (31.5 l) sealed enclosure.

Speaker Size (in) 12"
Style Round
Impedance (Ohms) 2
Voice Coils Single
RMS Power (W) 200
Peak Power (W) 300
Sensitivity (dB @ 1W/1m) 85.9
Frequency Response (Hz) N/A
Features DMA Optimised Motor
Elevated Frame Cooling
FCAM™ Cone Attach Method
Vented Reinforcement Collar
Insert Moulded Sub-Assembly
Engineered Lead-Wire System
Height (cm) 31.8
Width (cm) 31.8
Depth (cm) 15.6
Protrusion (cm) 1.9
Mounting Depth (cm) 13.7
Mounting Hole Diameter (cm) 28.1
Grills JLSGRU-12 (Sold Separately)
Recommended Minimum Power Handling (W) 75
Recommended Maximum Power Handling (W) 300
Recommended Box Volume Sealed (Litres) 31.15
Recommended Box Volume Ported (Litres) 45.3
Brand JL Audio
EAN 699440990455
