JL Audio 12" W0 SUBWOOFER 300W @ 4 OHM JL12W0V3-4
JL Audio 12" W0 SUBWOOFER 300W @ 4 OHM JL12W0V3-4
Couldn't load pickup availability
12" W0 SUBWOOFER 300W @ 4 OHM
JL12W0V3-4

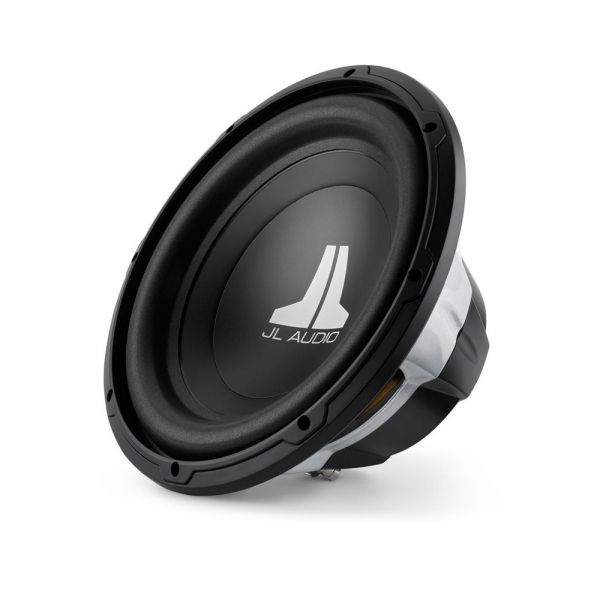

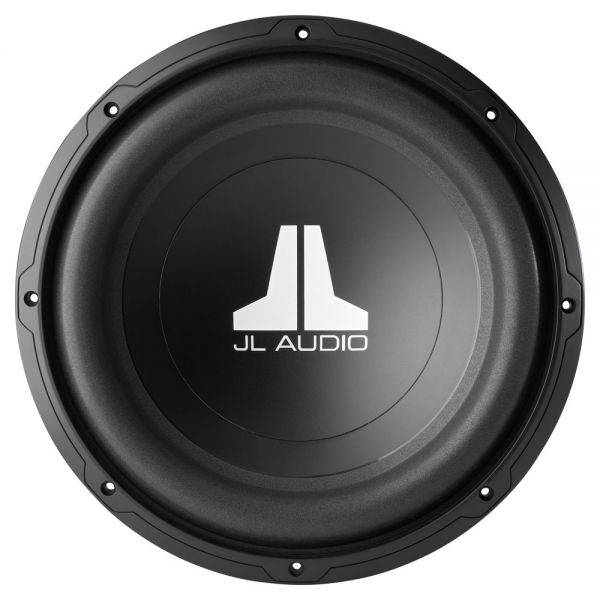

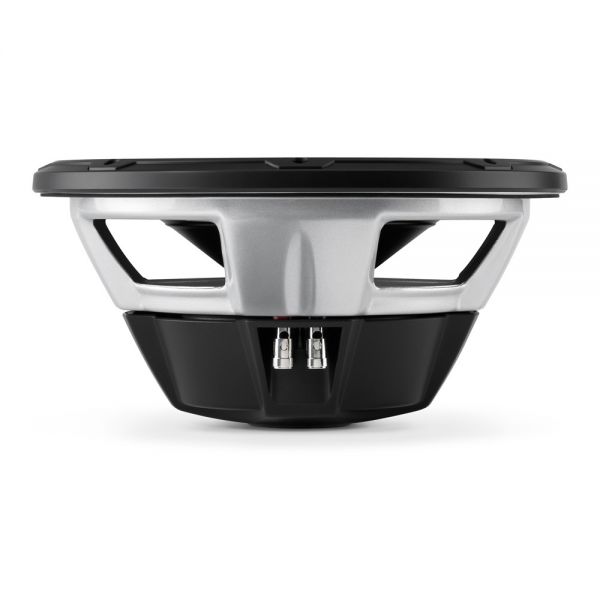

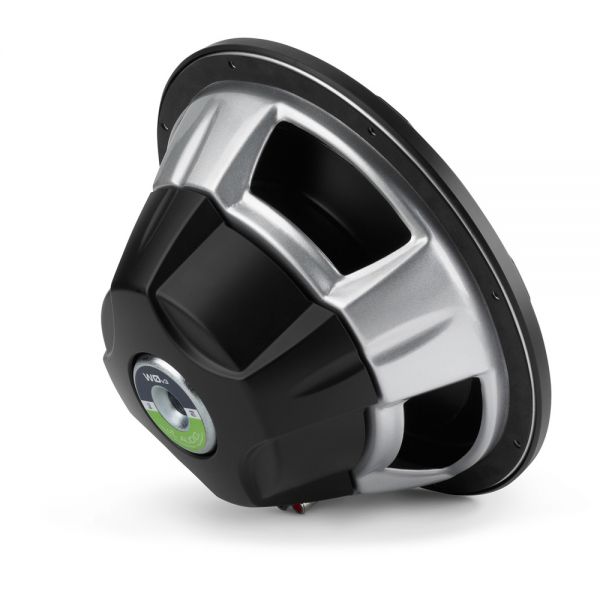

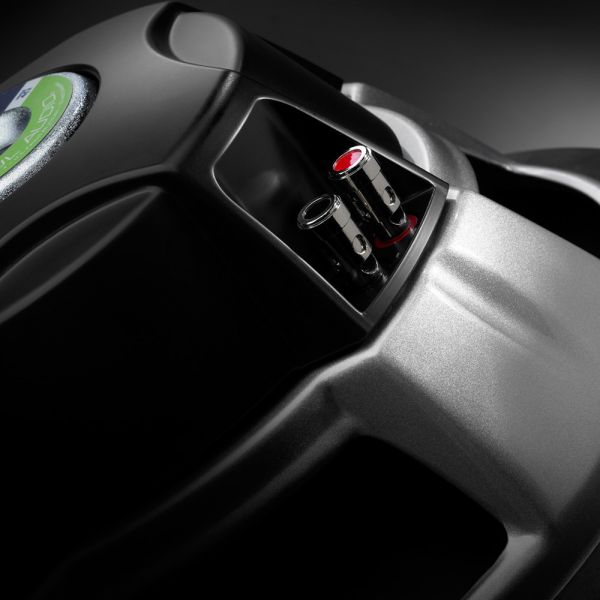

W0v3 12-inch Subwoofer (300 W, 4 Ω)
The 12W0v3 is a rugged performer with excellent efficiency, excursion capability and linearity. Its overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 12W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a moderately sized 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
| Speaker Size (in) | 12" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 175 |
| Peak Power (W) | 300 |
| Sensitivity (dB @ 1W/1m) | 85.64 |
| Frequency Response (Hz) | N/A |
| Features | AM Tuner DMA Optimised Motor Elevated Frame Cooling |
| Height (cm) | 31.8 |
| Width (cm) | 31.8 |
| Depth (cm) | 16 |
| Protrusion (cm) | 2.3 |
| Mounting Depth (cm) | 13.7 |
| Mounting Hole Diameter (cm) | 28.1 |
| Grills | JLSGRU-12 (Sold Separately) |
| Recommended Amplifier | JLJD500/1 JLRD500/1 JLMX500/1 |
| Recommended Minimum Power Handling (W) | 75 |
| Recommended Maximum Power Handling (W) | 300 |
| Recommended Box Volume Sealed (Litres) | 38.94 |
| Recommended Box Volume Ported (Litres) | 49.6 |
| Brand | JL Audio |
| EAN | 699440990479 |
