JL Audio 10" W7 SUBWOOFER 750W @ 3 OHM ANNIVERSARY EDITION
JL Audio 10" W7 SUBWOOFER 750W @ 3 OHM ANNIVERSARY EDITION
10" W7 SUBWOOFER 750W @ 3 OHM ANNIVERSARY EDITION
JL10W7AE
10th Anniversary Edition - W7 10-inch Subwoofer (750 W, 3 Ω)
If you are seeking reference-grade sub-bass from a 10-inch driver, your search ends here. Total Car Audio in the UK called it like this when they reviewed the 10W7: "This gives an all round performance of such high quality on every level, that bettering it will be very hard to achieve." Not only does the 10W7 deliver amazing excursion capability for its size, but it also maintains complete composure under power and is able to track complex bass material with uncanny accuracy and power.
The 10W7AE is best used with amplifier power in the 300W - 750W range and is optimized to operate in a 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.5 cu. ft. (42.5 l) ported enclosure.
W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:
- Satin-Black Powder coated Baskets
- Bright Anodized Surround Clamp Ring

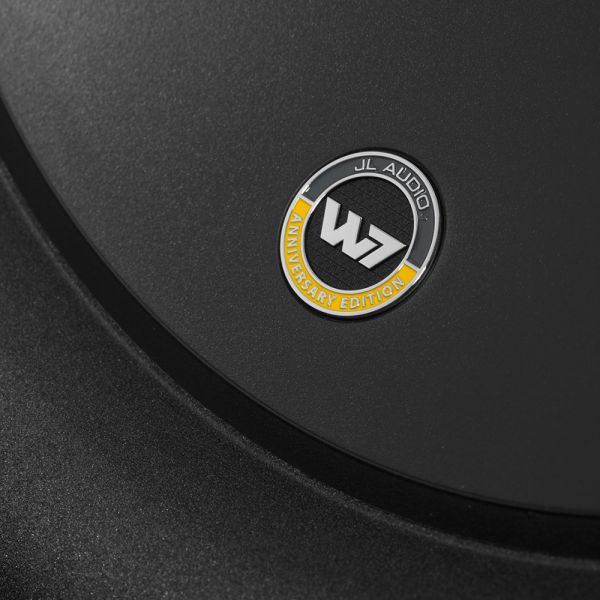

- Anniversary Edition Cone Badge

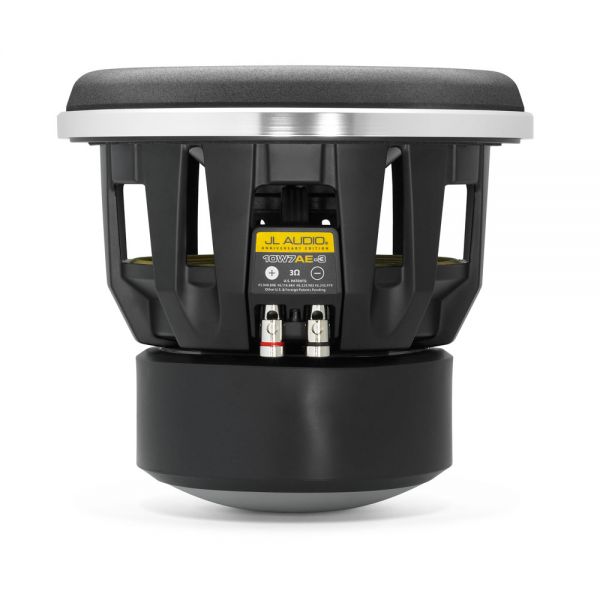

- Anniversary Edition Terminal Label
Speaker Size (in) | 10" |
---|---|
Style | Round |
Impedance (Ohms) | 3 |
Voice Coils | Single |
RMS Power (W) | 500 |
Peak Power (W) | 750 |
Sensitivity (dB @ 1W/1m) | 84.3 |
Frequency Response (Hz) | N/A |
Features | DMA Optimised Motor W Cone Assembly Elevated Frame Cooling FCAM™ Cone Attach Method OverRoll™ Surround Design Radially Cross-Drilled Pole-Piece Engineered Lead-Wire System Constructed In USA |
Height (cm) | 26.7 |
Width (cm) | 26.7 |
Depth (cm) | 23.9 |
Protrusion (cm) | 3.6 |
Mounting Depth (cm) | 20.3 |
Mounting Hole Diameter (cm) | 22.2 |
Grills | JLSGR-10W7 (Sold Separately) |
Recommended Amplifier | JLXD600/1v2 JLHD750/1 JL600/1v3 |
Recommended Minimum Power Handling (W) | 300 |
Recommended Maximum Power Handling (W) | 750 |
Recommended Box Volume Sealed (Litres) | 35.4 |
Recommended Box Volume Ported (Litres) | 42.5 |
Brand | JL Audio |
EAN | 699440990417 |
