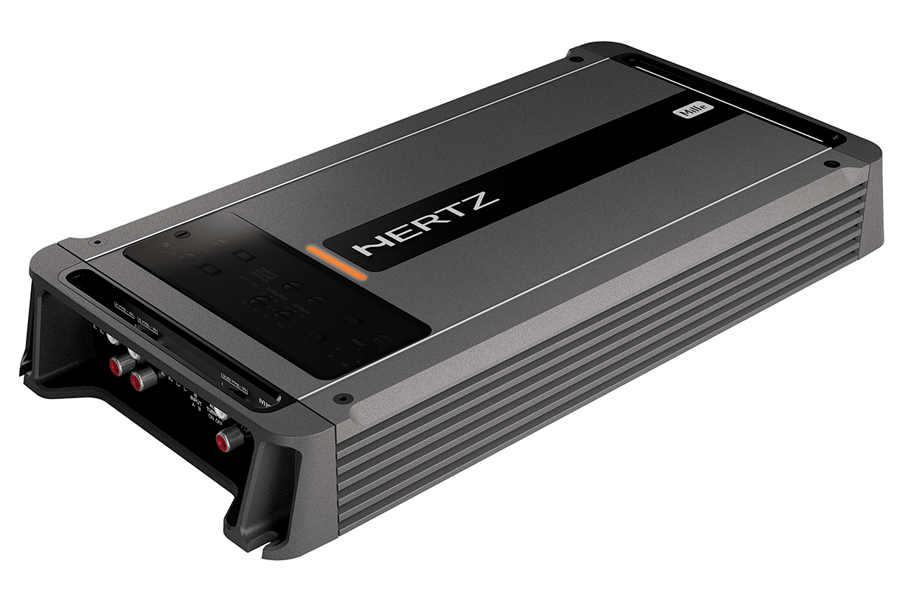

Hertz ML Power 1 D-CLASS MONO AMPLIFIER New Out

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The powerful mono Hertzaudio car amplifier ML Power 1 (1000 W - stable at 1 Ω) is perfect to drive the Mille subwoofers.  The filters combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of MLPower 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for an effortless tuning.

Channel mode   1

Output Power (RMS)

@ 14.4 VDC        1 Ch 600 W x 1 (4Ω)

1 Ch 1000 W x 1 (2Ω)

1 Ch 1000 W x 1 (1Ω)

Filters

Bypass

Lo-Pass

Subsonic

Yes

40 ÷ 500 Hz @ 24

dB/Oct.

18 ÷ 40 Hz @ 24

dB/Oct.

Distortion - THD

(100Hz @ 4Ω)    0.08 %

S/N Ratio

(A weighted @ 1V)          105 dB

Damping factor

(100Hz @ 4Ω)    100

Size W x D x H

mm (in.)               170 x 349 x 46.70 (6.69 x 13.74 x

1.84)
