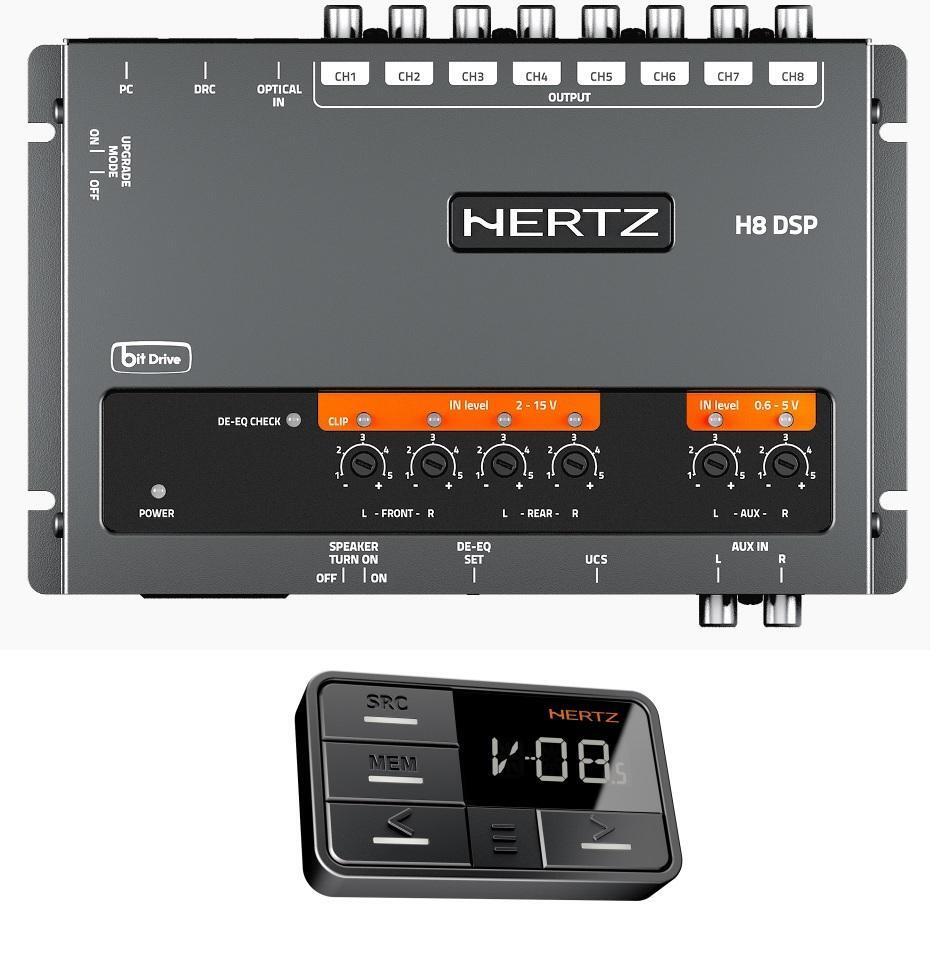

Hertz H8 8-channel DSP Time Align 31 band EQ with remote control display

BRAND NEW

AUTHORISED HERTZ UK DEALER

HERTZ H8 and DRC-H8 digital display

This superb DSP from Hertz is packed full of innovative and unique features!

Imagine having a particular setting for two-seat listening activated by a passenger simply climbing into your car.

Get control of your in car sound. Use a 31-band graphic equaliser on each output channel complete with time alignment, Linkwitz and Butterworth filters, guided set up via PC and everything else you could possibly need from a DSP.

Accurate, easy to use and of exceptional quality the Hertz H8 DSP offers functionality and quality sound previously only dreamt of at this price level

Operating power supply voltage 10.8 - 14.4 VDC Power supply 7.5 - 15 VDC Idling current 0.4 A Switched off without DRC 2.5 mA Switched off with DRC 4 mA Remote IN voltage 6.5 - 15 VDC (1.3 mA) Remote OUT voltage 12 VDC (130 mA)

INPUT STAGE High Level (Speaker) FL - FR - RL - RR Low Level (Pre) AUX IN Digital Optical IN (S/PDIF max 96 kHz/24bit) OPTICAL IN

EQUALIZER On Hi-Levels input (Speaker In) Automatic De-Equalisation On Outputs N.8 Graphic: ±12 dB @ 31 Band ISO 1/3 Oct. 20 - 20k Hz

SIZE W (Width) x H (Height) x D (Depth) mm/inch 191 x 34 x 131 / 7.51" x 1.33" x 4.76"Weight kg/lb 0.6 / 1.322

OUTPUT STAGE Low Level Pre (default) FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTRE

SIGNAL STAGE Distortion - THD @ 1 kHz, 1V RMS Output 0.005% Bandwith @ -3 dB 10 - 22k Hz S/N Ratio @ A weighted Digital input 105 dBA Master Input 95 dBA AUX Input 96 dBA Channel Separation @ 1 kHz 85 dB Input sensitivity (Speaker In) 2 - 15 V RMS Input sensitivity (AUX In) 0.6 - 5 V RMS Input impedance (Speaker In) 2.2 k Ohm Input impedance (AUX) 15 k Ohm Max Output Level (RMS) @ 0.1% THD 4 V RMS

CONNECTIONS From / To Personal Computer 1 x USB / B DRC HE Audio controls and Memory / Inputs selection Optical / AUX select Optical In / Aux wire control + 12V / GND enable Memory A / Memory B Memory A / B wire control + 12V / GND enable

CROSSOVER

N.8 (one for each output channel) Filter Type Full / High Pass / Low Pass / Band Pass Filter mode and slope Linkwitz @ 12 / 24 dB Butterworth @ 6 / 12 / 18 / 24 dB Crossover frequency 68 steps @ 20 - 20k Hz Phase control 0° - 180°

TIME ALIGNMENT Distance 0 - 510 cm / 0 - 200.8 inch Delay 0 - 15 ms Step 0.08 ms; 2.8 cm / 1.1 inch Fine set 0.02 ms: 0.7 cm / 0.27 inch

GENERAL REQUIREMENTS PC connections USB 1.1 / 2.0 / 3.0 Compatible Software/PC requirements: Microsoft Windows (32/64 bit): XP, Windows 7, Windows 8, Windows 10 Graphic card min. resolution: 800 x 600
