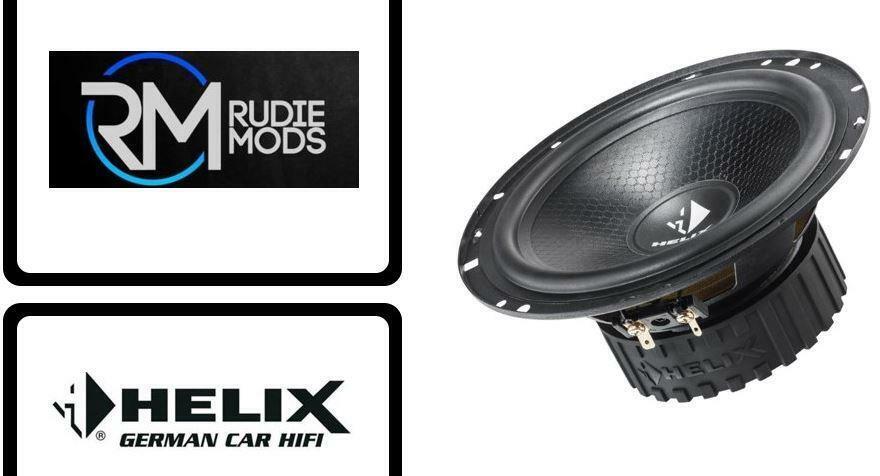

The details make the difference - don't get mislead by the discreet visual appearance of the P 6B. This driver is definitely a perfect basis for a top-class sound system. Its unique glassfiber-paper compound cone combines minimum weight with maximum stiffness and perfect inner damping. To further reduce the moving mass an 1-inch / 25 mm voice coil has been chosen which nevertheless can easily handle up to 100 Watts RMS due to its extremely high temperature resistance. It's not only the powerful kick bass and the uncoloured midrange response but also the exceptional low distortion which makes the P 6B a "winner".

Novel glassfiber-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping

Special shaped rubber surround for long linear cone excursion

Gold-plated terminals

Individual HELIX design basket

Solid rubber magnet protection ring with HELIX logo

Grille included

Power RMS / max.

 P

100 / 200 Watts

Impedance

Z

4 Ω

DC resistance

Re

3.5 Ω

Frequency response



40 Hz - 4,000 Hz

Resonance frequency

Fs

56 Hz

Mechanical Q factor

Qms

5.48

Electrical Q factor

Qes

0.54

Total Q factor

Qts

0.49

Compliance

Cms

571 μm/N

Equivalent air volume

Vas

13.2 L

Force factor

B*I

5.7 Tm

Efficiency 1 W / 1 m

SPL

90 dB

Cone area

Sd

129 cm²

Moving mass

Mms

14.3 g

Cone material



Glassfiber-paper compound

Mechanical resistance

Rms

0.91 kg/s

Voice coil diameter

ø

25 mm

Voice coil winding height



12 mm

Max. linear excursion

Xmax

+/- 3 mm

Outer diameter

ø

165.5 mm / 6.50"

Installation diameter

ø

142 mm /  5.60"

Installation depth



67 mm / 2.64"



Recommended enclosure volumes

Sealed box

Net volume



8 L

Lower limiting frequency (-3dB)



75 Hz



Vented box

Net volume



14 L

Port diameter

ø

50 mm / 2.00"

Port area



20 cm²

Port length



12.5 cm / 4.92"

Port tuning frequency

Fb

48 Hz

Lower limiting frequency (-3dB)



51 Hz

Delivery Contents

2 x Mid-woofer HELIX P 6B

2 x Mounting ring

2 x Grille

1 x Mounting material
