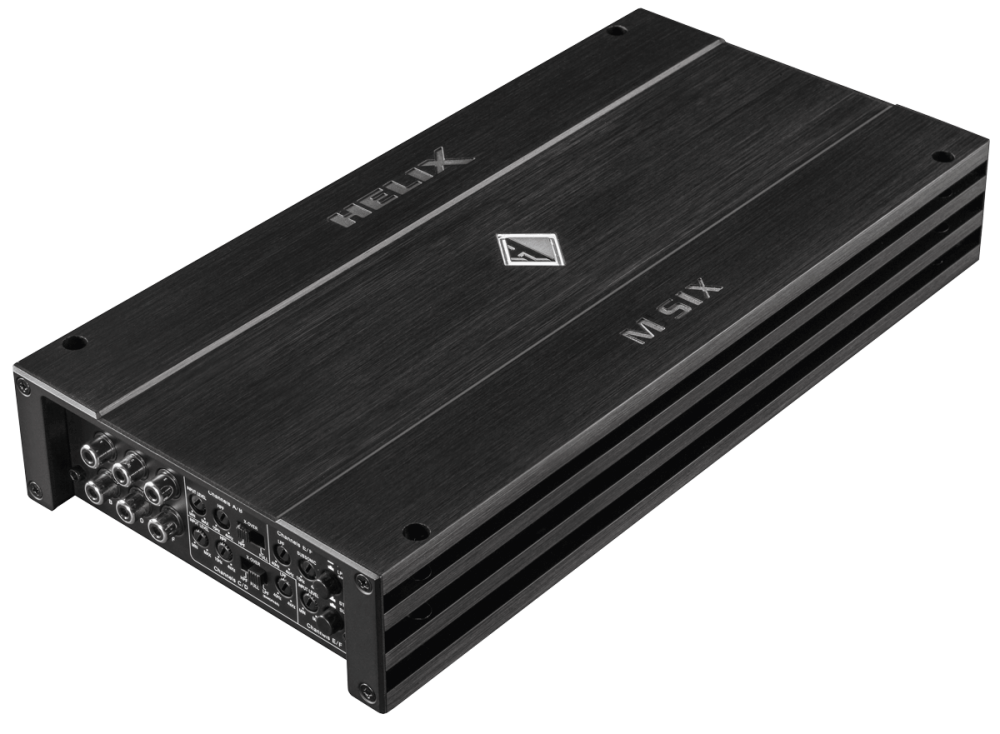

HELIX M SIX 6 Channel Car Audio amplifier 6x100w RMS

One for all - no matter if 3-way, 2-way or subwoofer application, the 6-channel amplifier M SIX will always be the right choice. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp really gets your speaker cones going despite its super-compact dimensions. On the other hand the M SIX stays totally cool thanks to its highly efficient Class D design topology. And even bridged configurations are possible, delivering up to 3 x 200 Watts RMS of clean and undistorted output power. In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. And finally the perfect sound tuning is no big deal thanks to its integrated crossover with all its setup options.

mall footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms loadStart-Stop capability down to 6V supply voltage6-channel lowlevel inputIntegrated, active crossover with highpass, lowpass, bandpass and subsonic"Input mode" switch for channel E & F for flexible input signal routingSMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliabilityExclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency

Special features:

Start-Stop capabilityThe switched power supply of the HELIX M SIX assures operation even if the battery's voltage drops down to 6 Volts during engine crank.

Output power RMS / max. - @ 4 Ohms 6 x 100 / 200 Watts- @ 2 Ohms 6 x 100 / 200 Watts- @ 1 Ohm -- bridged @ 4 Ohms 3 x 200 / 400 Watts- bridged @ 2 Ohms - Amplifier technology Class DInputs 6 x RCA / Cinch1 x Remote InInput sensitivity RCA / Cinch 0.5 - 6 VoltsInput impedance RCA / Cinch 20 kOhmsInput impedance highlevel - Outputs 6 x Speaker outputOutput voltage RCA / Cinch - Signal converter for digital input - Frequency response 10 Hz - 30,000 HzBass boost - Highpass 15 Hz - 4,000 Hz adjustableLowpass 40 Hz - 4,000 Hz adjustableBandpass 15 Hz - 4,000 Hz adjustableSubsonic / HPF15 Hz - 4,000 Hz adjustablePhase - Slope high- / lowpass 12 dB/Oct.Slope subsonic / lowpass - Signal-to-noise ratio digital input - Signal-to-noise ratio analog input 98 dB (A-weighted)Distortion (THD) 0.05 %Damping factor 100Operating voltage 10.5 - 16 Volts (max. 5 sec. down to 6 Volts)Idle current 1,550 mAFuse 2 x 35 A Maxi-fuse (APX)Additional features Active, adjustable crossover, subsonic input mode switch channel E / F, subsonic, Start-Stop capabilityDimensions (H x W x D) 50 x 320 x 154 mm / 2.00 x 12.60 x 6.06"
