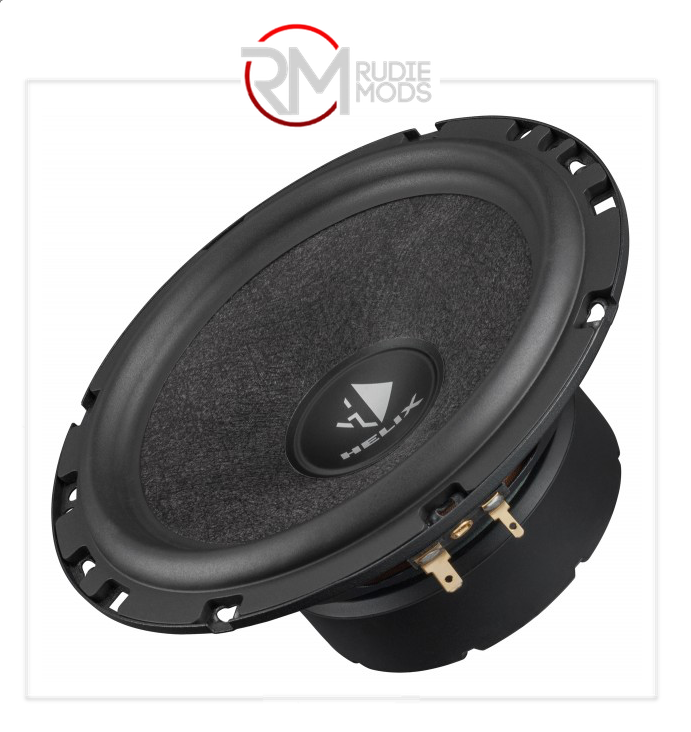

Helix Audiotec Fischer S 6B 6.5" / 165 mm Car Door Mid-Woofer High End Audio

Elegant designed mid-woofer trimmed for maximum sound quality.



The extremely rigid cone consists of a novel basalt-fiber-paper compound ? the perfect combination to guarantee clear and straight sound

even at high volume levels. Beside a powerful bass reproduction and

peerlessly neutral mids, the S 6B impresses with exceptionally low distortion.

A dream team is the combination with the S 1T tweeter that ideally complements the frequency range. Together with an Audiotec Fischer

 power amplifier, the S loudspeakers strike up to top form and provide the perfect basis for absolute top sound systems!

6.5? / 165 mm mid-woofer with novel basalt-fiber-paper compound cone ? a perfect combination of lowest weight, high stiffness and inner damping

Specially shaped rubber surround for larger effective cone area and increased maximum excursionIndividual HELIX basket with additional ventilation holes for better voice coil cooling and high power handlingRugged rubber magnet boot with HELIX-logoGold-plated terminals

Power RMS / max.

P

100 / 200 Watts

Impedance

Z

4 ?

DC resistance

Re

3.4 ?

Frequency response



45 Hz - 4,000 Hz

Resonance frequency

Fs

67 Hz

Mechanical Q factor

Qms

3.87

Electrical Q factor

Qes

0.96

Total Q factor

Qts

0.77

Compliance

Cms

370 ?m/N

Equivalent air volume

Vas

10.3 L

Force factor

B*I

4.8 Tm

Efficiency 1 W / 1 m

SPL

90 dB

Cone area

Sd

141 cm²

Moving mass

Mms

14.8 g

Cone material



Basalt-fiber-paper compound

Mechanical resistance

Rms

1.64 kg/s

Voice coil diameter

ø

25 mm

Voice coil winding height



12 mm

Max. linear excursion

Xmax

+/- 3 mm

Outer diameter

ø

165 mm / 6.50"

Installation diameter

ø

143 mm /  5.63"

Installation depth



65 mm / 2.56"



Recommended enclosure volumes

Sealed box

Net volume



9 L

Lower limiting frequency (-3dB)



75 Hz

Delivery Contents

2 x Mid-woofer HELIX S 6B

1 x Mounting material1 x Data sheet1 x Mounting pattern
