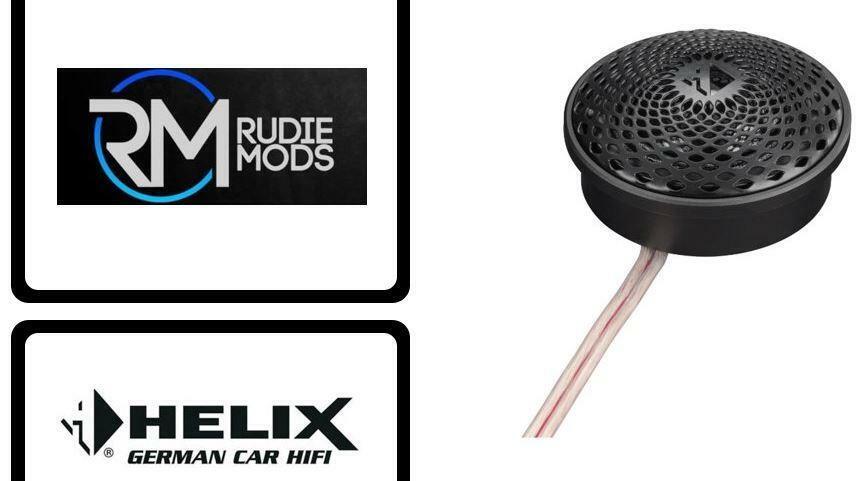

HELIX Audiotec Fischer S 1T 1" Silk Dome Tweeter 100W Rms Authorised Dealer

HELIX Audiotec Fischer S 1T 1" Silk Dome Tweeter 100W Rms Authorised Dealer

A tweeter for the good sound – Only the tweeters provide the perfect sound experience in a sound system.

The coated silk dome and the highly efficient neodymium magnet of the S 1T implicate an unique sensitivity in the high-frequency reproduction and crystal clear sound. The high-grade mounting cup made from anodized aluminum with removeable grille offers optimum protection of the dome and impresses in an exclusive HELIX design.

The special highlight: The tweeter unit can be taken out of the mounting cup. Thus, the already very compact dimensions can be reduced and offers optimum preconditions for easy integration into the vehicle.

One thing´s for sure: The new S 1T tweeters turn every sound system into a "high"-light!

1” / 25 mm tweeter with high efficient neodymiummagnet and coated silk dome for balanced, natural sound reproduction and lowest compression effects

Mounting cup made from anodized aluminum with removable protection grille in exclusive HELIX design

Lowest possible production tolerances and solely use of best materials

Including installation material

Power RMS / max.

P

100 / 200 Watts(highpass > 3,000 Hz at 12 dB/Oct.)

Impedance

Z

4 Ω

DC resistance

Re

3.4 Ω

Frequency response

2,500 Hz - 25,000 Hz

Resonance frequency

Fs

1,600 Hz

Efficiency 1 W / 1 m

SPL

91 dB

Voice coil diameter

ø

25 mm

Cone area

Sd

4.9 cm²

Moving mass

Mms

0.3 g

Cone material

Coated silk dome

Outer diameter

ø

51 mm / 2.0"

Installation diameter

ø

45 mm / 1.77"

Installation depth

14 mm / 0.55"

Recommended crossover frequencies for the highpass

Slope

Minimum crossover frequency

6 dB/Octave

4,000 Hz

12 dB/Octave

> 3,000 Hz

24 dB/Octave

> 2,500 Hz

Delivery Contents2 x Tweeter HELIX S 1T incl. flush mount2 x Fitting spring1 x Mounting material
