HELIX 16.5 cm 2-Way Component System Power P 62C

Helix 10cm 2-Way Component System Power Handling: 40/80 Watts

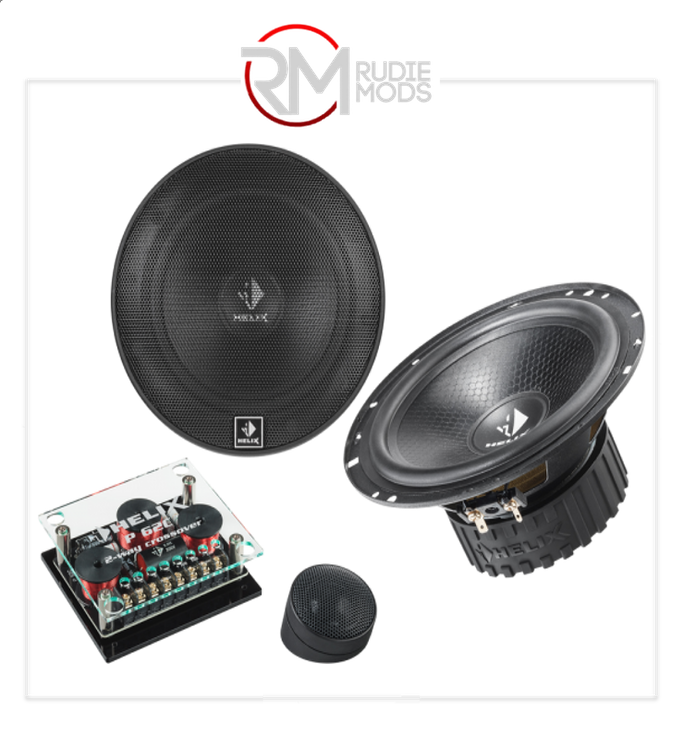

HELIX P 62C

Puristic yet trimmed to maximum sound quality - the component speaker systems of the P series don't need to dazzle with visual gimmicks. The whole construction with lots of finesse follows the acoustic performance which is absolutely breathtaking.The unique glass fibre-paper compound cone of the mid-woofer, the hand-coated silk dome tweeter and the complex crossover network with impedance compensation and band-stop filter are only a few of the technical highlights. Therefore, it is not a surprise that the P 62C already gathered excellent test rewards.

6.5? / 165 mm woofer with novel glass fibre-paper compound cone for maximum stiffness combined with lowest moving mass and perfect inner damping

1? / 25 mm tweeter with hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects

Complex crossover network with impedance compensation, band-stop filter and tweeter level adjustment; solely equipped with high-grade components:- Zero-distortion air coils with the lowest DC resistance- Low-induction metal film resistors- Minimum-loss Audiotec foil condensers for tweeter crossover

Gold-plated terminals

Grille included

Power RMS / max.

 100 / 200 Watts

Frequency response

40 Hz - 25,000 Hz

Impedance

4 ?

Efficiency 1 W / 1 m

90 dB

Cone material

TW: Coated silkM: -W: Glassfiber-paper compound

Crossover

6/12 dB with impedance compensation, bandstop filter and tweeter level adjustment

Outer diameter

TW: 58 mm / 2.28"M: -W: 165.5 mm / 6.52"

Installation diameter

TW: 49.3 mm / 1.95"M: -W: 142 mm / 5.60"

Installation depth

TW: 15 mm / 0.60"M: -W: 67 mm / 2.64"

Fitting advice

Although some of our products may seem simple to fit we do always advise that you have them installed by a qualified fitter and wait to receive the item before making arrangements for the fitting of the item. We also advise that you contact your insurance company to ensure the modifications you are planning to make to the vehicle does not void your policy. We can not be held accountable if you are not a qualified fitter and you damage the item in any way, if you have booked the fitting before receiving the item or if you do not inform your insurance company of the modification and your insurance is voided.
