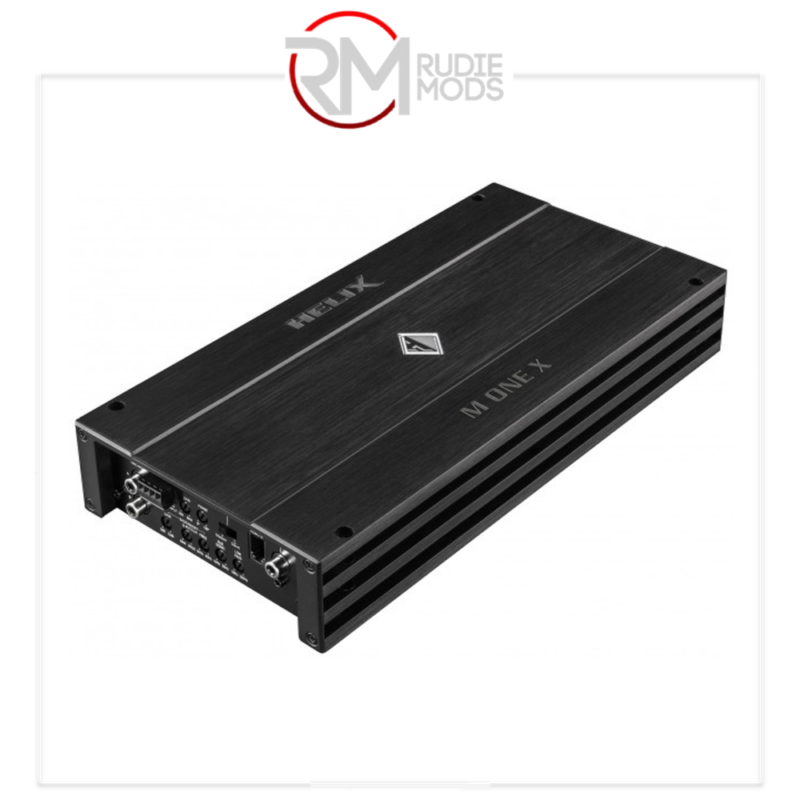

HELIX M ONE X

Small, efficient and uncompromisingly stable - the M ONE X is a highly compact monoblock for subwoofer applications. Designed from the latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X amplifiers can be combined to one single powerhouse ? thanks to the TwinPower Link.

In addition, a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.



Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel

Start-Stop capability down to 6V supply voltage

Smart highlevel input with ADEP circuit and Auto Turn-On function

Integrated, active crossover with lowpass, bass boost, subsonicand phase control

TwinPower Link for connecting two amplifiers in bridged mode

Bass remote control for volume adjustment

Low heat dissipation thanks to extraordinary efficiency



Special features:

Smart highlevel inputThe latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE X.The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.Start-Stop capabilityThe switched power supply of the HELIX M ONE X assures operation even if the battery?s voltage drops down to 6 Volts during engine crank.

Power RMS ? 1% THD+N

Normal operation (One amplifier)

TwinPower Link (Two amplifiers)

- @ 4 Ohms

1 x 400 Watts

1 x 1,400 Watts

- @ 2 Ohms

1 x 700 Watts

1 x 2,060 Watts

- @ 1 Ohm

1 x 1,030 Watts

-

- bridged @ 4 Ohms

-

-

- bridged @ 2 Ohms

-

-

Max. output power per channel*:

Up to 1,180 Watts RMS @ 1 Ohm

Amplifier technology

Class D

Inputs

2 x RCA / Cinch2 x Highlevel speaker input1 x Remote In1 x Remote control input

Input sensitivity

RCA / Cinch 0.5 - 6 VoltsHighlevel 1.1 - 13 Volts

Input impedance RCA / Cinch

20 kOhms

Input impedance highlevel

9 - 33 Ohms

Outputs

1 x Speaker output

Output voltage RCA / Cinch

-

Signal converter for digital input

-

Frequency response

10 Hz - 250 Hz

Bass boost

0 - 12 dB / 30 - 80 Hz

Highpass

-

Lowpass

50 Hz - 250 Hz adjustable

Bandpass

10 Hz - 250 Hz adjustable

Subsonic

10 Hz - 50 Hz adjustable

Phase

0 - 180° adjustable

Slope high- / lowpass

-

Slope subsonic / lowpass

12 / 24 dB/Oct.

Signal-to-noise ratio digital input

-

Signal-to-noise ratio analog input

95 dB (A-weighted)

Distortion (THD)

0.20 %

Damping factor

150

Operating voltage

10.5 - 16 Volts (max. 5 sec. down to 6 Volts)

Idle current

800 mA

Fuse

3 x 40 A Maxi-fuse (APX)

Additional features

Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control

Dimensions (H x W x D)

50 x 320 x 154 mm / 2.00 x 12.60 x 6.06?

* In typical applications as subwoofer amplifier
