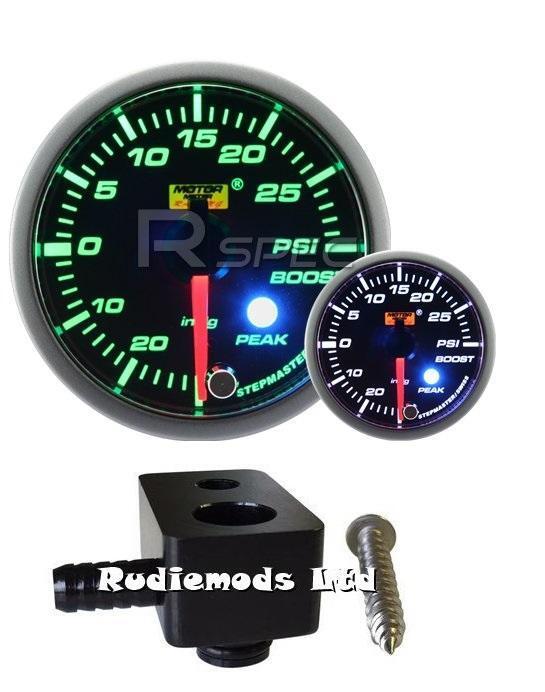

Ford Fiesta ST180 52mm Green White Boost gauge PSI and fitting adaptor

Ford Fiesta ST180 boost tap and gauge

52mm Prosport smoked lens with Green / White switchable illumination BOOST - PSI

The 52mm smoked Lens / red Needle Stepper Motor (Peak & Warning) Series gauges (With optional green or white display) have two modes.

When the ignition is switched off the gauge faces are still 100% visible and when the ignition is switched on the gauge faces come to life with fully illuminated super green or white detail, illuminated redneedle and audible warning sound that is all surrounded by a gunmetal colour bezel.

The clear lens design and striking ice white coloured needle make this a very desirable combination which proves very popular with modern performance cars. These gauges represent the very latest technology and perform a full self calibrate sequence each time the ignition is turned on, as the ignition is turned on the gauge takes an automatic adjustment reading within the sender to zero the needle compensating for the correct atmospheric pressure etc, resulting in 100% accurate readings regardless of elevation or climate.

These gauges use microprocessors / Swiss movement to provide super smooth pointer movement for high precision readings under extreme conditions.This extremely impressive series of professional gauges is absolutely packed full of features offering stunning looks combined with the required precision.

All gauges in this series are supplied in presentation boxes with comprehensive fitting kits & instructions

Gauge Type: Turbo Boost Pressure Gauge (PSI)

• Gauge Style: Smoked Lens, red needle, green or super White display with adjustable warning and peak recall function (270° sweep)

• Gauge Size: 2" (52mm) with shallow body

• Electrical / Mechanical: Electrical

• Additional Information: Supplied with sender, fitting kit, optional mounting cup and instructions.

Gauge Features:• New smoked lens design so that the gauge is constantly visible whether powered or not.• New red needle design to give that professional touch.• Peak recall function.• Fully adjustable warning.• Optional green or white illumination. Easily wired to switch colours with headlight activation.• Optional & switchable warning/start up sound.• warning illumination mode (when the set warning level is exceeded).• Daisy chain power system between gauges, so only one power supply required for multiple gauges.• Plugged sensor harnesses.• Optional slimline dash cup included.• Slim and compact gauge body (30mm depth).

The Fiesta Mk7 ST-180 Ecoboost engine has no original vacuum or boost pressure take off points directly from the inlet manifold without modifications possibly vioiding warranty.

Our billet aluminium (anodised black) boost / vacuum take off adapter simply sandwiches between the original Ford MAP sensor and the inlet manifold to create the perfect boost gauge or dump valve connection.

This is very simple to install and can be fitted in less than 5 minutes, so perfect for both novice and professional installation.

Can be removed in case of warranty issues

Our adaptor is also supplied with the required extended fixing screw.

PLEASE NOTE

Even though we list this as a Fiesta ST180 "KIT", you will still need to find somewhere to fit the gauge and run the wires through the engine bay to inside the car

The gauge is a universal boost gauge and we supply the billet adaptor for the inlet manifold as shown in the picture

No car specific instructions are included
