Audison Forza AF M6D - High-power 6-channel Car amplifier 6x135W RMS

Audison Forza AF M6D - High-power 6-channel DSP amplifier

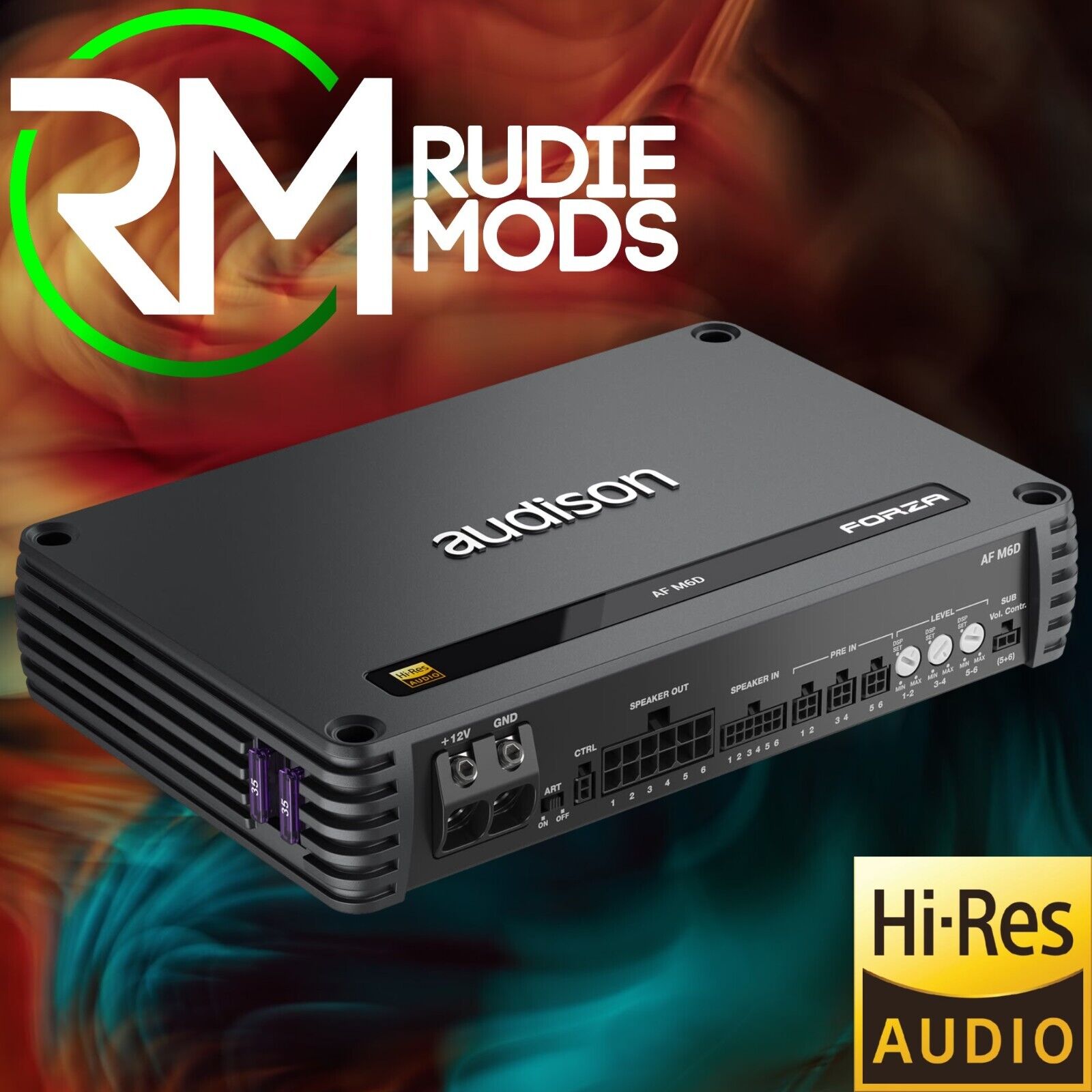

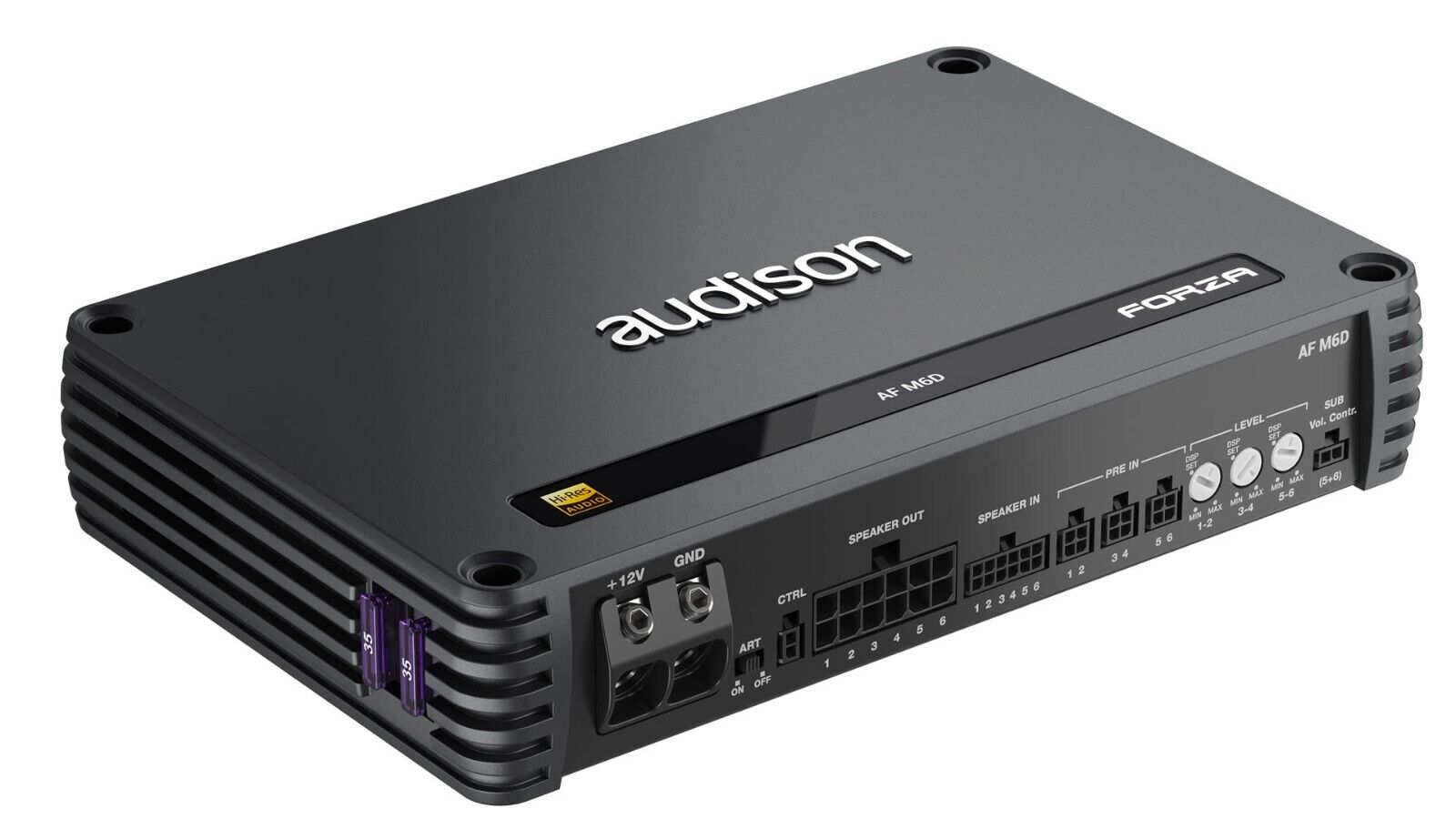

Audison Forza AF M6D

Six high-power audiophile class D channels providing 6 X 135 WRMS into 4ohms. The sophisticated on board DSP software provides installers with a raft of features to aid with interface and set up even to the most challenging of OEM installations. Compact size and class-leading thermal efficiency further assist installers with easy installation with a truly audiophile result.

Nominal power supply voltage / fuse: 11 - 15 VDC / 2 x 35A

Pulse operating voltage: 6.5 - 17.5 VDC

Idling current: 1.0 A

Standby current draw: 0.009 mA

Consumption @ 14.4 VDC, Minimum load impedance (Max Musical Power): 67 A

Remote IN: 4 -15 VDC (1 mA)

Remote OUT: 6.5 -15 VDC (150 mA)

ART - Automatic Remote Turn on/off from Speaker-In: 1.5 VDC

Efficiency @ rated power (RMS) @14.4 VDC, 1% THD,4Ω, All Channels: 81%

AMPLIFIER STAGE

Distortion - THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.04%

Damping factor @ 1 kHz , 4Ω, 2 VRMS: 160

Bandwidth @ -3 dB: 10 Hz - 42 kHz

S/N ratio (A weighted @ 1 V Input, Rated Power) Master Input: 103 dBA

Minimum load impedance:

6Ch: 2Ω

3 Ch - (Bridge 1/2; 3/4; 5/6): 4Ω

Output Continuous Power (RMS) @14.4 VDC, 1% THD:

• 6 Ch @ 4Ω: 135 W x 6

• 6 Ch @ 2Ω: 220 W x 6

• 3Ch (Bridge 1/2; 3/4; 5/6) @ 4Ω: 440 W x 3

CEA SPECIFICATIONS

Output power @ 4Ω, 1% THD+N, 14.4 V: 130 W x 6

SN ratio (ref. 1 W output): 80 dB

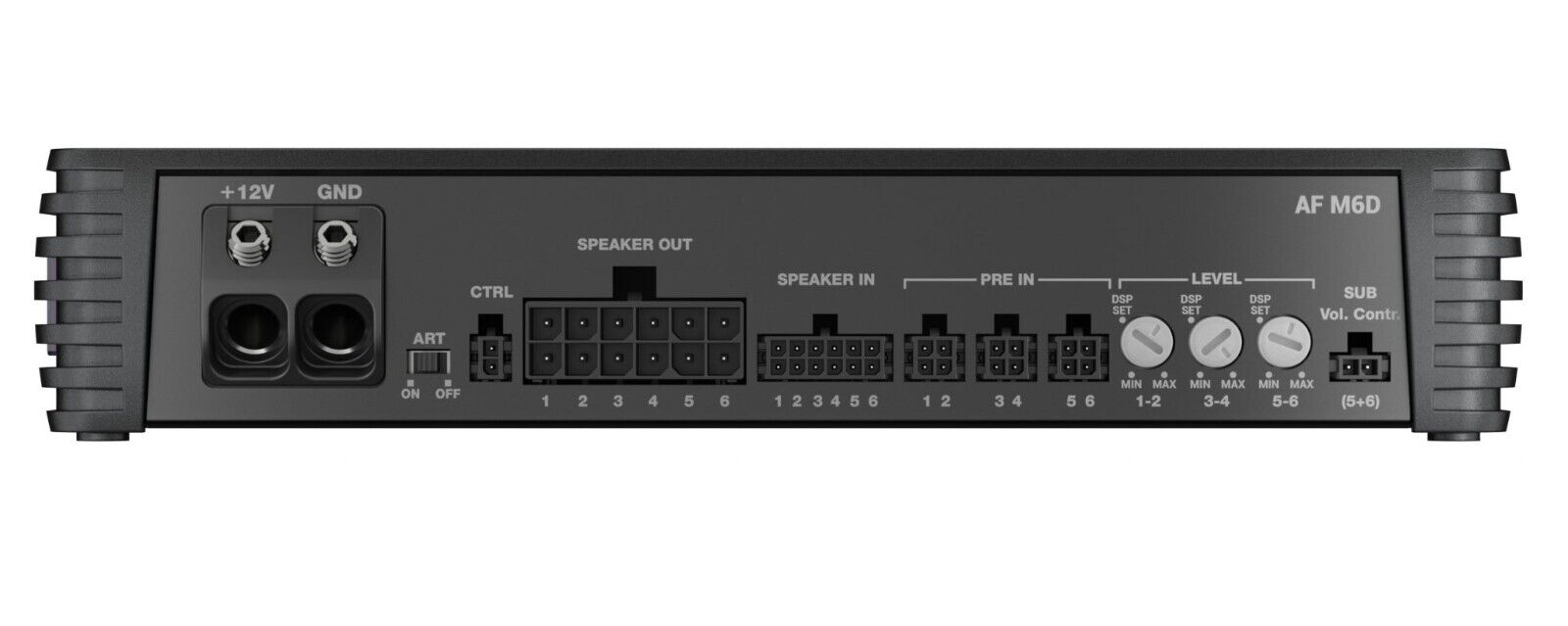

INPUTS / OUTPUTS / FILTERS

Inputs

Pre-In / Speaker-In

Input sensitivity Pre-In

0.6 - 6 VRMS

Input sensitivity Speaker-In: 2.2 - 22 VRMS

SUB remote Volume Control (optional): (-20 ÷ 6) dB

GENERAL REQUIREMENTS

Ambient operating temperature range: 0 °C to 55 °C (32 °F to 131 °F)

SIZE / WEIGHT

Max size W x H x D (mm/inch): 240 x 47 x 156 / 9.44 x 1.85 x 6.14

Weight (kg/lb): 1.95 / 4.3
