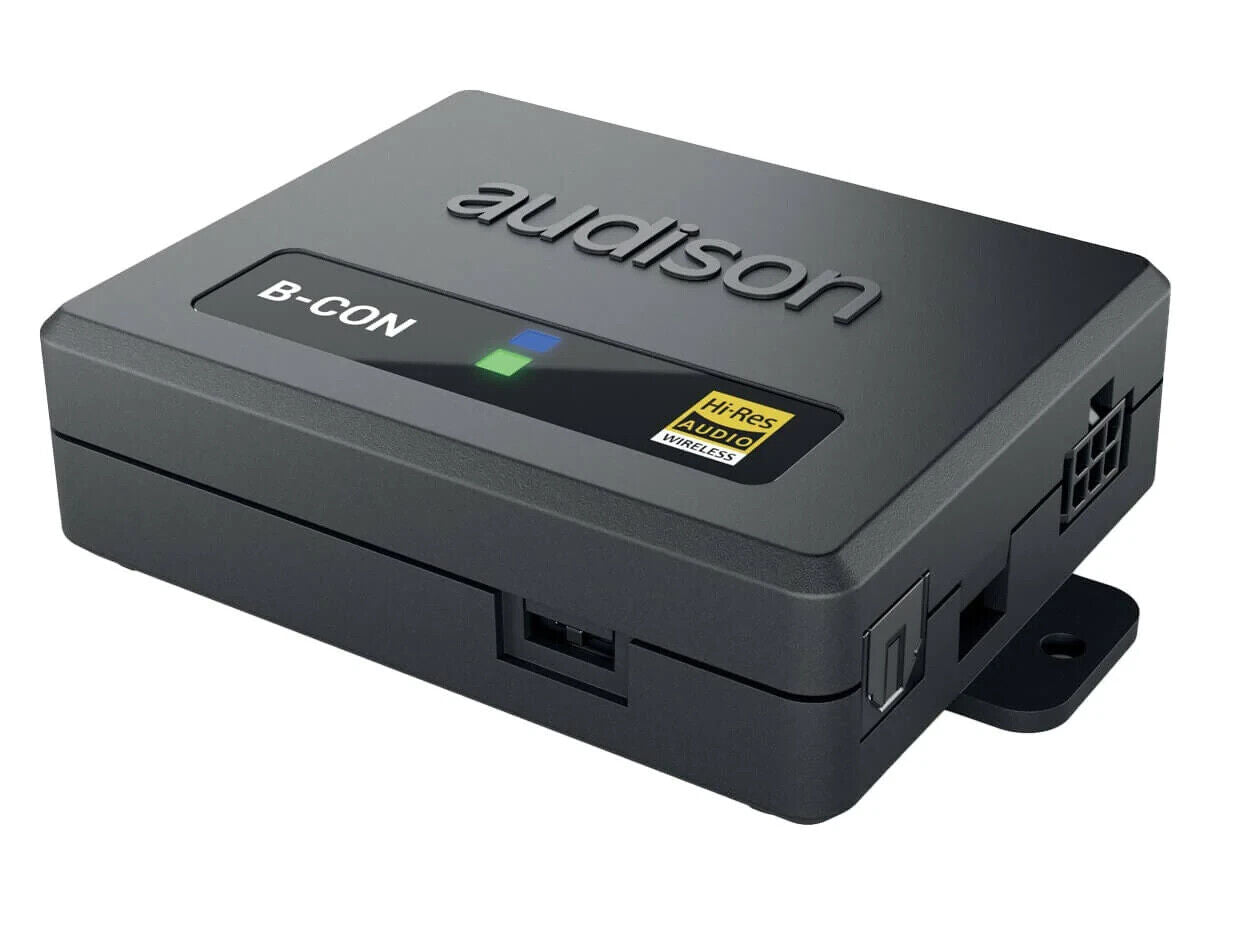

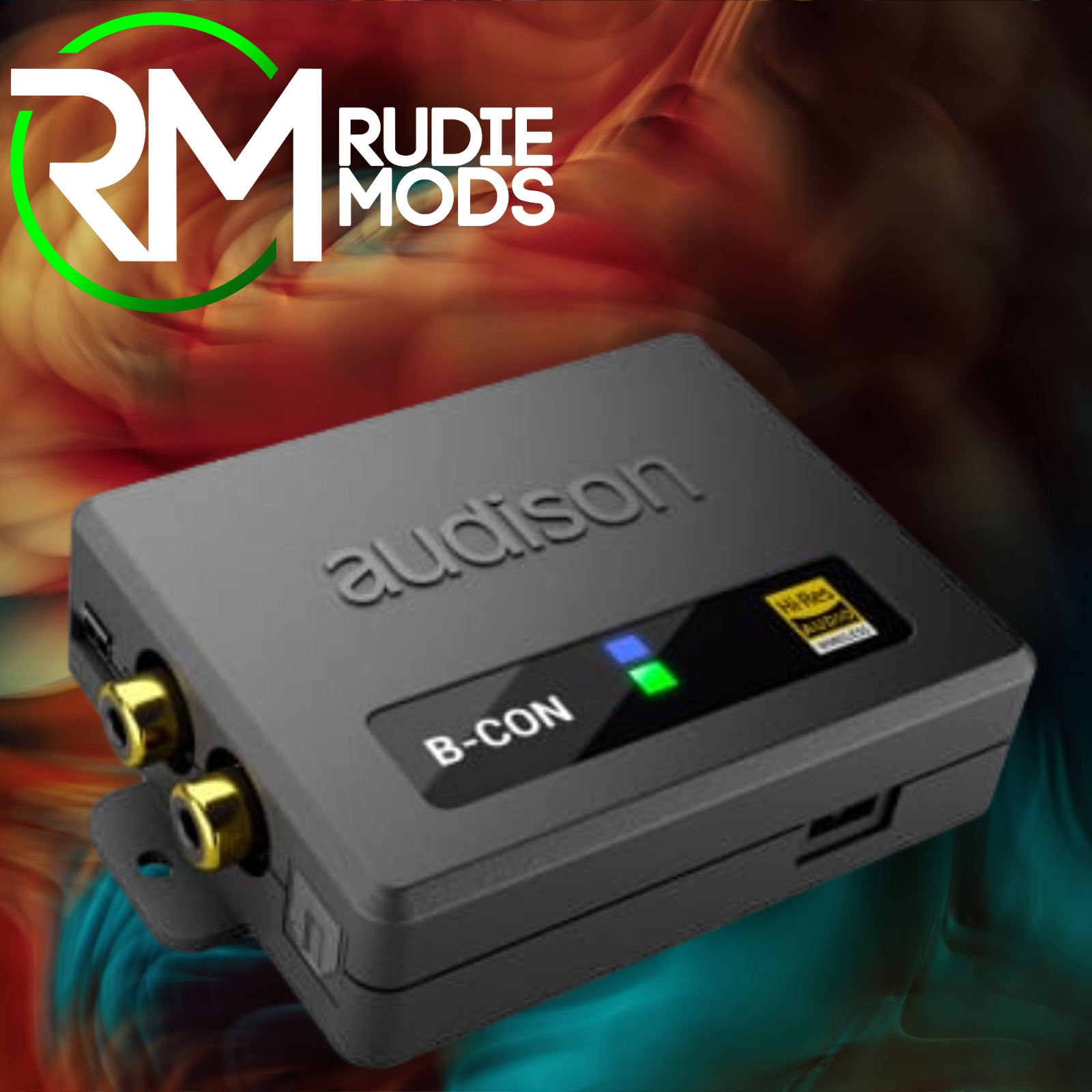

Audison bit B-Con Hi Res Bluetooth Module

Audison bit B-Con Hi Res Bluetooth Module

Stream Hi-Res content from your mobile device via bluetooth or directly into an optical input. The B-Con is the world's first Bluetooth 5 device authorised for automotive use by the Japan Audio Society (JAS). Will stream Hi-Res up to 24bit 96kHz or pass through Hi-Res signals up to 24bit 192kHz via its alternative optical input. With optical or analogue outputs this device adds a handy Hi-Res input to your car audio system.

Technical Specification

Voltage: 6 - 24 VDC

Idling current: 70 mA @ 12 V

Remote IN voltage: 3 - 12 VDC (0.5 mA)

+ 12 Remote IN voltage: 6 - 12 VDC (70 mA)

USB Micro 5 V (500 mA) Type: Bluetooth 5.0 + EDR

Codec: Ldac, AAC, SBC

Profile: Bluetooth A2DP 1.3, AVRCP 1.6

Optical digital: S/PDIF Optical (Max 24 bit/192KHz)

Digital IN delay switch: 1 sec.

Power Connector: AUX SEL wire, MASTER ENABLE wire

Serial RS232, to manage Optical input and ADC: Absolute Volume control with other Audison devices that support this

Mode Switch: Absolute volume ON/OFF, upgrade mode

Optical digital:

From Optical input: 24 bit 192 KHz

From Streaming Bluetooth: 24 bit 96 kHz max.

Analog:

Bandwith (MAX) 20 ÷ 48K Hz

Output Level 2 VRMS

Distortion - THD @1 KHz, 1 VRMS 0.003% S/N RATIO (A weighted) 100 dBA

SIZE

W x H x D mm / In. 90 x 60,4 x 23 / 3.54 x 2.38 x 0.91
