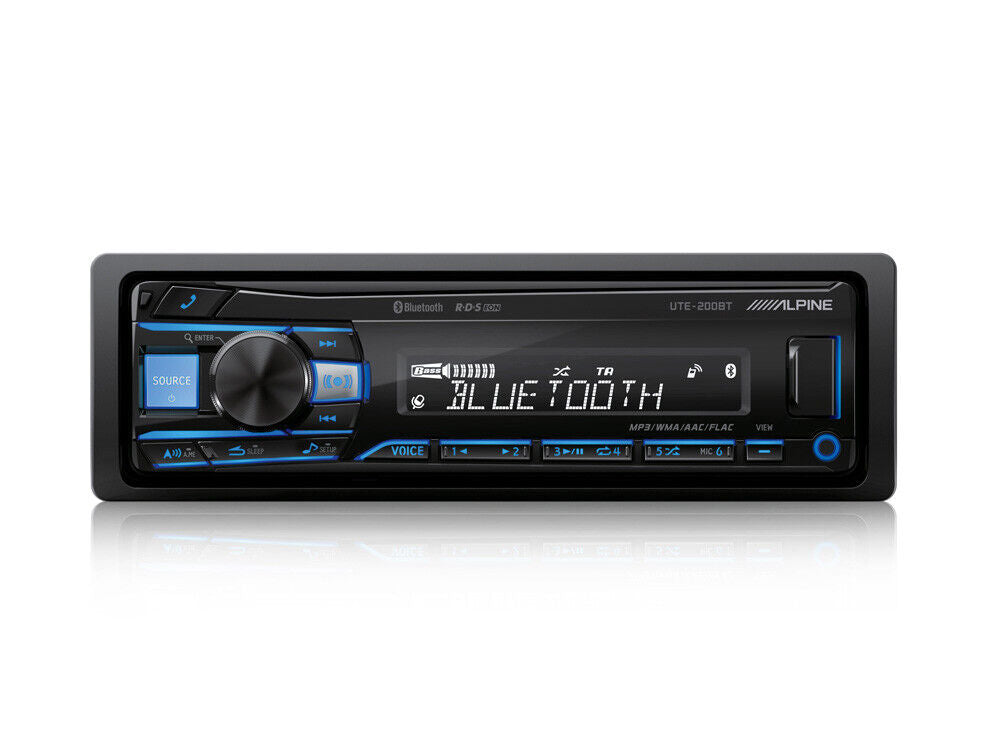

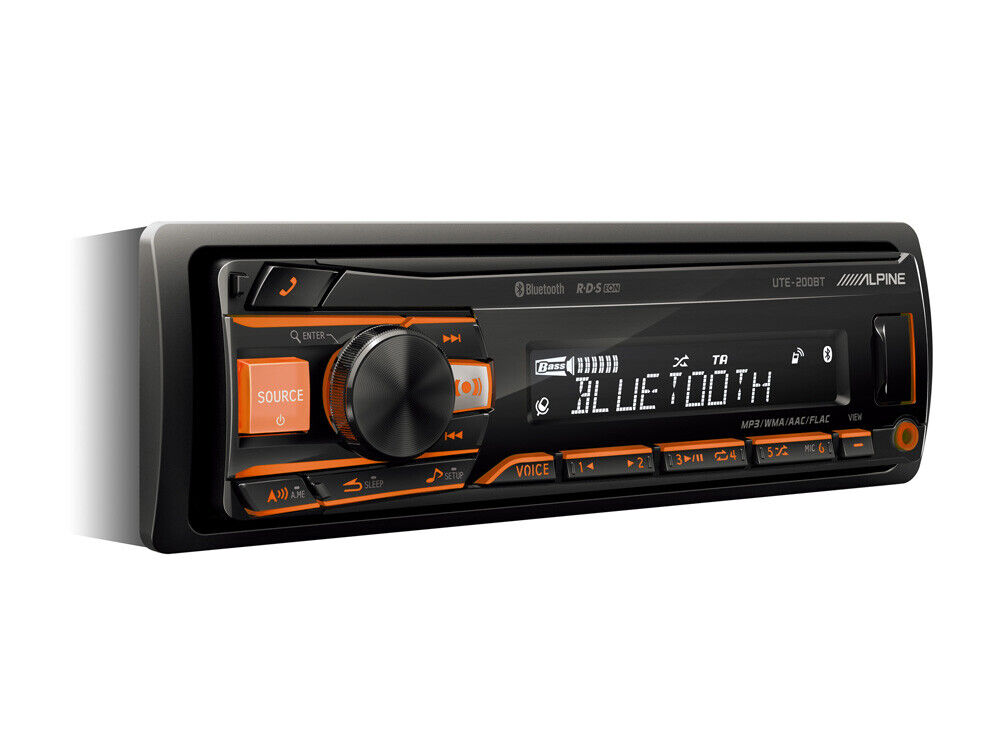

Alpine UTE-200BT Bluetooth Car Radio - Black

DIGITAL MEDIA RECEIVER WITH BLUETOOTH®

Alpine UTE-200BT.

The UTE-200BT is an affordable single-DIN solution that steps up your sound to Alpine quality and offers many connectivity features to keep you entertained on the road.

Connect your iPhone or iPod to enjoy all your stored audio content and Apple Music, stream Spotify or internet radio via Bluetooth audio technology, or simply connect a USB stick - there are many connectivity solutions possible with this Alpine head unit.

The included microphone allows clear phone conversations with the built-in Bluetooth hands-free function. You can even adjust the button and display illumination colour separately in the full RGB spectrum, to match your preference and dashboard. Wireless remote controls are available as accessory.

Built-in amplifier: 4 x 50 Watts

2 PreOuts (2 Volts)

Tuner

Memory Presets: Preset Stations (FM:18, MW:6, LW:6)

Memory: Auto Memory

RDS

RDS Functions: AF, TA, TP, PTY, EON

PTY (Programme Type) Display

BLUETOOTH®

Built-in BLUETOOTH® Module

Hands Free Calling: HFP (Hands Free Profile)

Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible

Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible

Phone Book Search

Voice Dial Operation

Auto Answer

Call Waiting

Call History Display: Phone Book Call, Dialled Call, Received Call

Speech Volume Level Adjustment

Hands-Free Phone Sound Setting

Firmware Updatable

Microphone Included

Made for iPhone® / iPod®

Connection: USB connection (KCU-445i Required)

Made for iPod/iPhone

M.I.X. (Shuffle) Play: Track

Repeat: All, Track

Battery Charging

USB Media Connection

Front USB Connection

MP3, WMA, AAC, FLAC Playback

Folder Up/Down

M.I.X. Random Play

Repeat: Track, Album, All

USB AOA (Android Open Accessory) 2.0

Sound Tuning

Subwoofer Level Adjustment

BASS ENGINE SQ: Level Control 0-6

Subwoofer Phase Select: 0°/180°

Subwoofer System Select

High Pass Filter

Low Pass Filter

2V Voltage 2PreOuts

10 Equalizer PreSets: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country and Classical

3-band Parametric Equalizer

General

Power Output: 4 x 50 W High Power Amplifier

Display LCD: 14 Segments White LCD Display 1Line

Control Type: Rotary Encoder Knob

Variable RGB Illumination Buttons

2 PreOuts (2V, Front + Subwoofer)

Multi Bit DAC

Front AUX Input (3.5mm mini jack)

Steering Wheel Remote Control Ready

-20dB Mute

Remote Control Ready

Clock

Detachable DIN Trim Plate

Detachable Face Plate

Dimmer

Power Antenna Lead

Remote Turn-On

Specifications

Max Power Output Ratings

Max Power Output: 4 x 50W

FM Tuner

Tuning Range: 87.5 - 108.0 MHz

MW Tuner

Tuning Range: 531 - 1,602 kHz

LW Tuner

Tuning Range: 153 - 279 kHz

USB

USB Requirements: USB 1.1/2.0

Max. Power Consumption: 1,000 mA

File System: FAT 16/32

Sound Tuning

Subwoofer Level Adjustment: 0 to 15 dB

Subwoofer Phase Setting: 0° or 180°

High Pass Filter: Off, 80/100/120 Hz

Low Pass Filter: Off, 80/100/120 Hz

Bass Level Control Range: ±7 dB at 100Hz

Bass Center Frequency: 60/80/100/120 Hz

Bass Band Width Adjustment (Q): 4 choices (0.5=wide, 1.0=medium, 1.5=medium, 2=narrow)

Treble Level Control Range: ±7 dB at 10 kHz

Treble Center Frequency: 7.5k/10k/12.5k/15k Hz

Treble Band Width Adjustment (Q): 2 choices (0.75=wide, 1.25=narrow)

Mid Level Control Range: ±7 dB

Mid Center Frequency: 500/1k/1.5k/2.5k Hz

Mid Band Width Adjustment (Q): 4 choices (0.75=wide, 1.0=medium, 1.25=medium, 1.5=narrow)

General

Power Requirement: 12V.DC

Pre Output Voltage (Before Clipping): 2V / 10k ohms

Aux In: 1.4V / 10k ohms

Maximum Mounting Angle: 30°

Weight: 0.8 kg

Dimensions

Din Size: 1 DIN

Chassis Size (W x H x D) mm: 178 x 50 x 177 mm
