AIRTEC Motorsport Front Mount Intercooler for Ford Puma 1.5 ST

AIRTEC Motorsport Front Mount Intercooler for Ford Puma 1.5 ST

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

AIRTEC Part No: ATINTFO56

As part of our expanding Ford Puma product range, AIRTEC Motorsport is proud to launch our intercooler upgrade suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler's size and performance within the confines of the limited space behind the bumper is based upon a a full size, single-pass core design that covers the full span of the vehicle's grille, measuring nearly three times taller than the original. This offers a massive 150% increase in frontal area and a huge increase in capacity, which allows it to make the most of the air flow provided.

The stepped core design is 80mm in depth in the lower section and 40mm in depth in the upper section, which fits neatly in front of the standard crash bar and behind the bumper with no modification required.

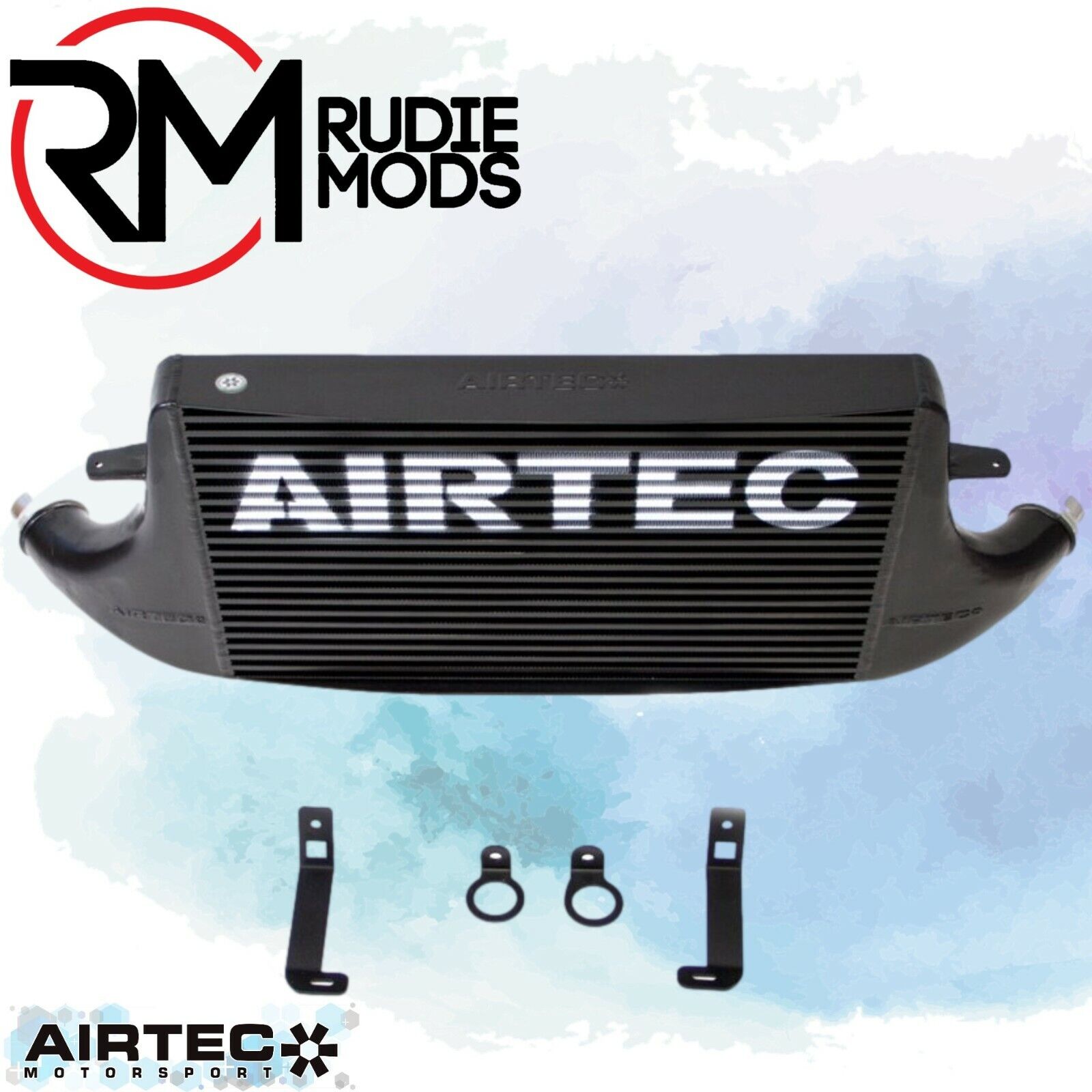

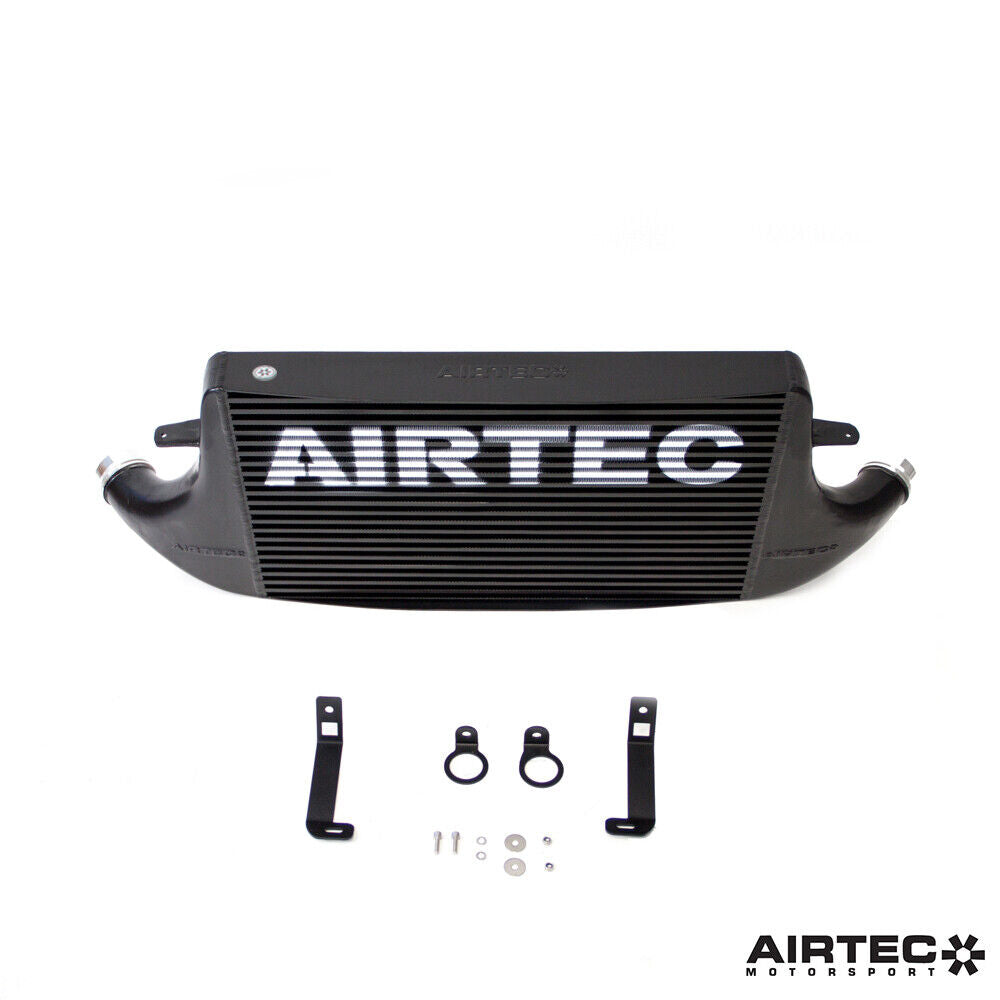

The comprehensive kit includes AIRTEC Motorsport's cast end tanks, laser-cut brackets and all fixtures and fittings for a direct, bolt-on installation.

It's proven cooling efficiency and straight forward fitment makes it an essential modification for all modified Fiesta Mk8 ST models.

Dimensions:

OEM intercooler

Width: 690mm

Height: 140mm

Depth: 75mm

Inlet: 50mm

Outlet: 55mm

Front area: 966cm²

AIRTEC Motorsport intercooler

Width: 710mm

Height: 415mm

Depth: 80mm to 40mm stepped core

Inlet: 60mm

Outlet: 67mm

Front area: 2,945cm²

Features:

Cast end tanks to optimise air flow

Larger stepped bar and plate intercooler core

Comes complete with full fitting instructions

Proven power increases and cooling efficiency

Available in satin black
