JL Audio
8" W1V3 SUBWOOFER 150W @ 4 OHM JL8W1V3-4
8" W1V3 SUBWOOFER 150W @ 4 OHM JL8W1V3-4
Couldn't load pickup availability
8" W1V3 SUBWOOFER 150W @ 4 OHM
JL8W1V3-4

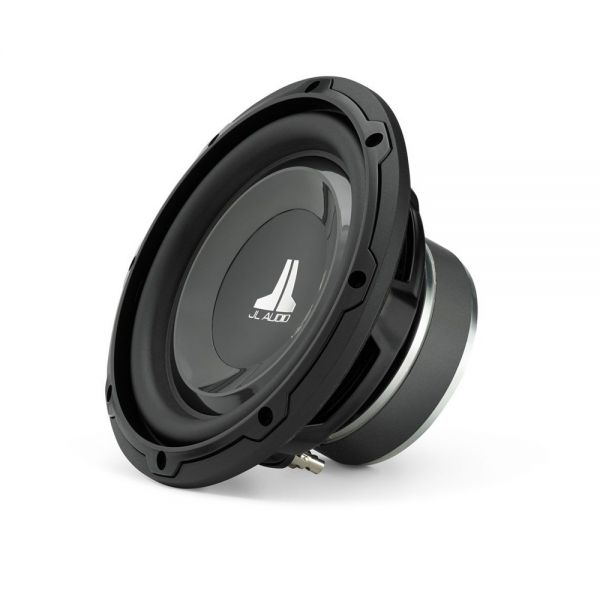

W1v3 8-inch Subwoofer (150 W, 4 Ω)

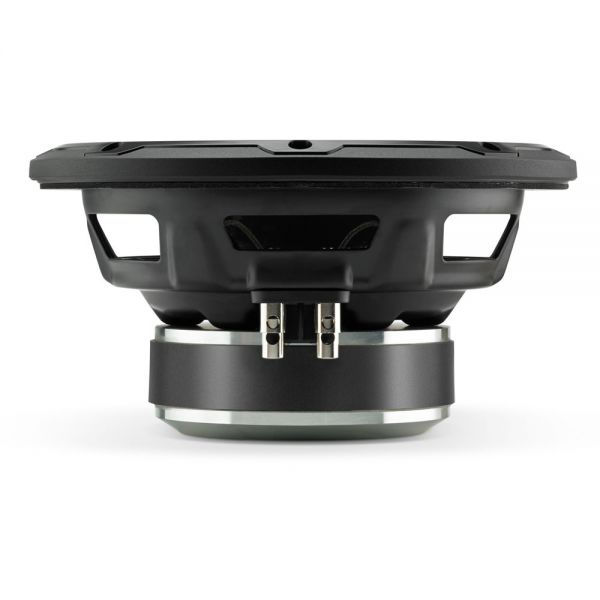

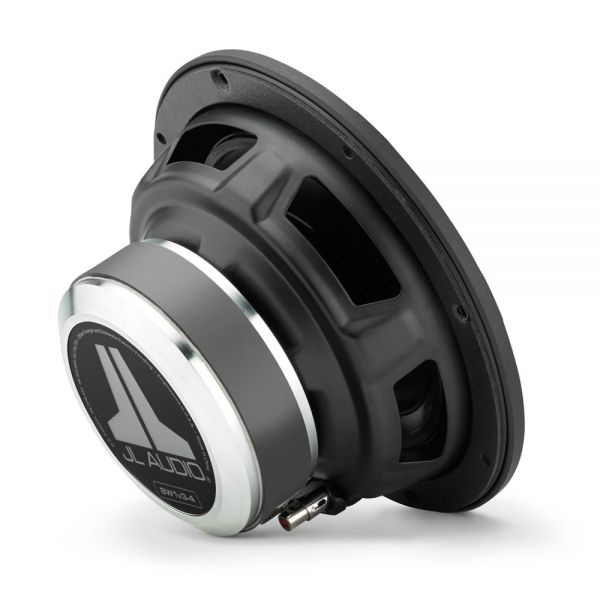

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-4 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure.
| Speaker Size (in) | 8" |
|---|---|
| Style | Round |
| Impedance (Ohms) | 4 |
| Voice Coils | Single |
| RMS Power (W) | 100 |
| Peak Power (W) | 150 |
| Sensitivity (dB @ 1W/1m) | 84.8 |
| Frequency Response (Hz) | N/A |
| Features | DMA Optimised Motor Elevated Frame Cooling FCAM™ Cone Attach Method Vented Reinforcement Collar Insert Moulded Sub-Assembly Engineered Lead-Wire System |
| Height (cm) | 21.6 |
| Width (cm) | 21.6 |
| Depth (cm) | 11.7 |
| Protrusion (cm) | 1.9 |
| Mounting Depth (cm) | 9.8 |
| Mounting Hole Diameter (cm) | 18 |
| Grills | JLSGRU-8 (Sold Separately) |
| Recommended Minimum Power Handling (W) | 50 |
| Recommended Maximum Power Handling (W) | 150 |
| Recommended Box Volume Sealed (Litres) | 9.9 |
| Recommended Box Volume Ported (Litres) | 14.2 |
| Brand | JL Audio |
| EAN | 699440990202 |
