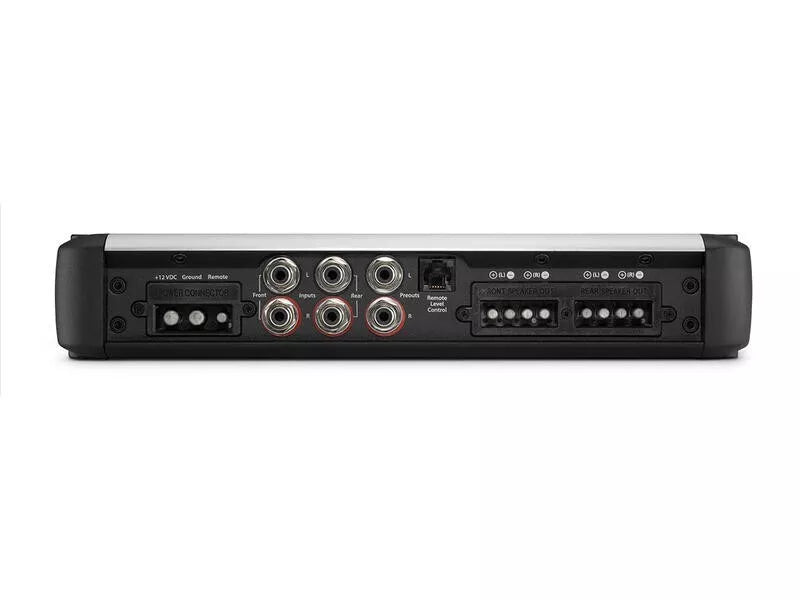

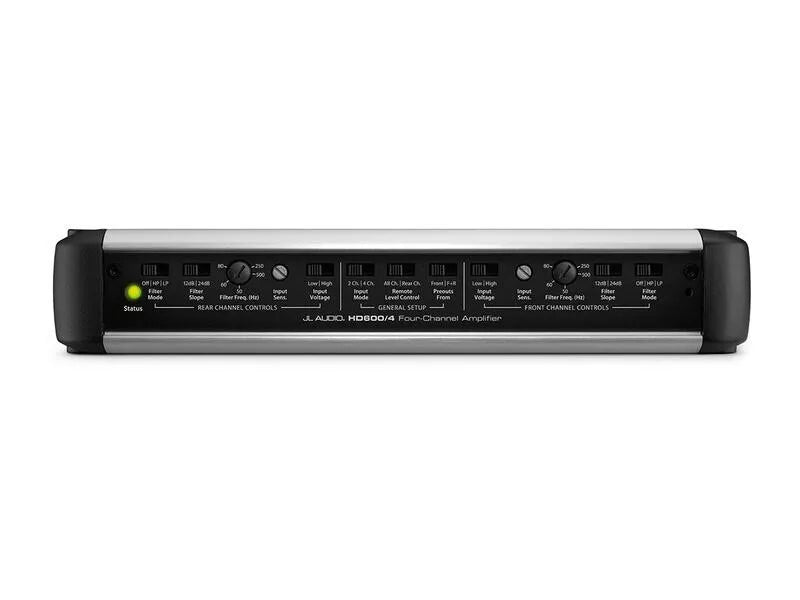

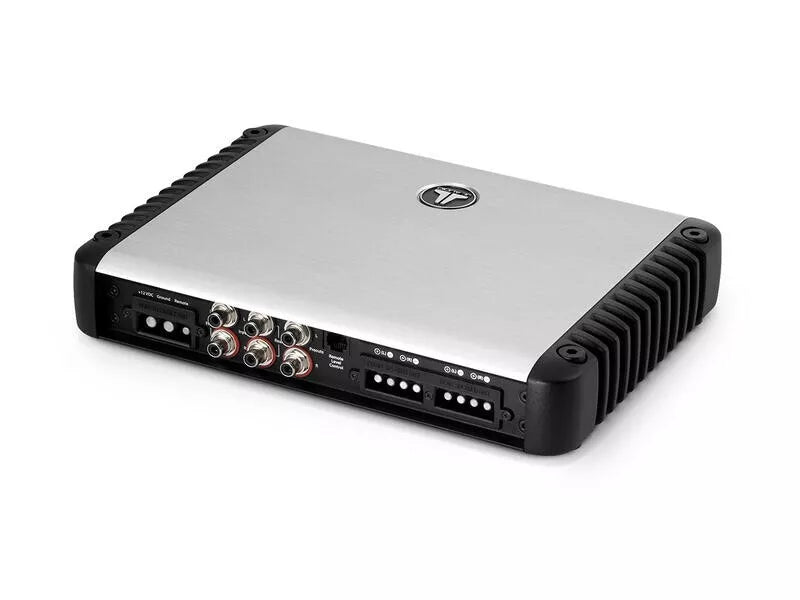

JL Audio HD600/4 4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω

Amplifier

4-Channel Class D Full-Range Amplifier, 150 W x 4 @ 1.5-4 Ω

This compact multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.

When using the HD750/1 or HD1200/1 to drive a subwoofer system, the HD600/4 is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.

It can also be deployed on its own as a very capable 3-channel system amplifier with 150 W x 2 to the satellites and 300 W x 1 to a subwoofer system.

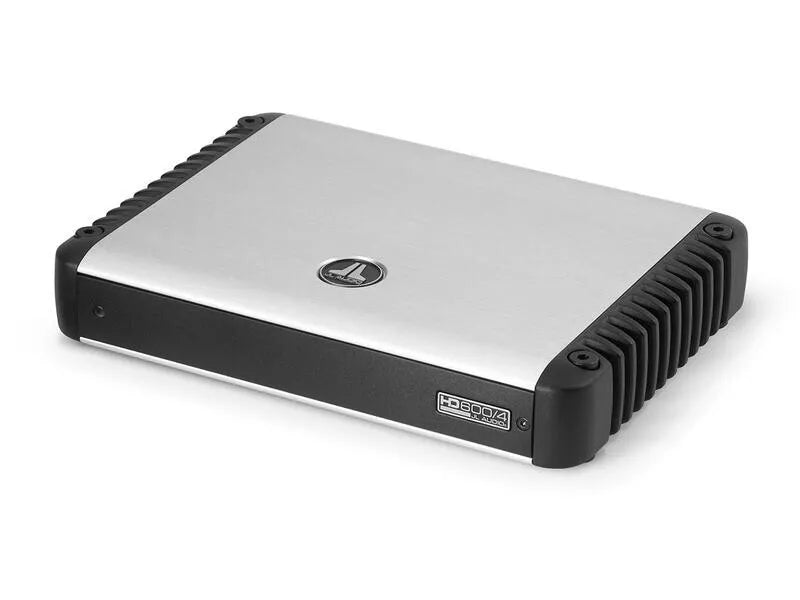

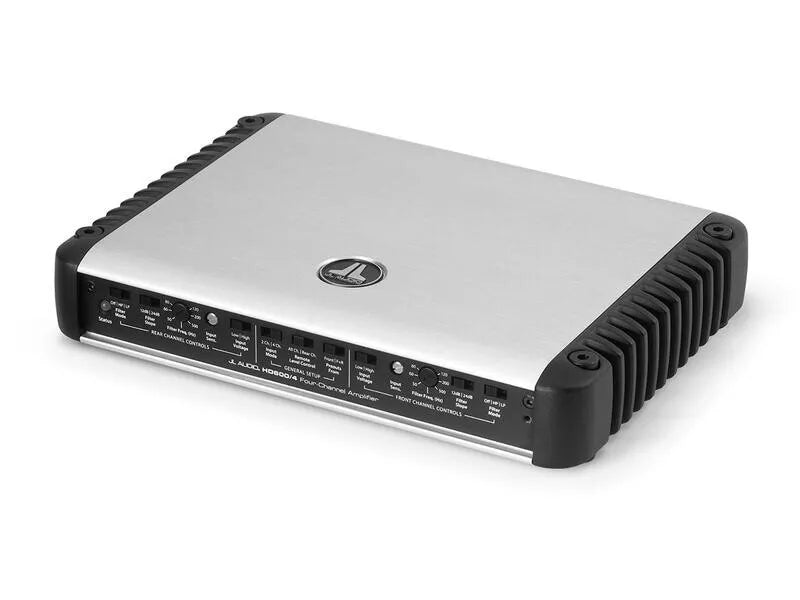

This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

• Frequency Response: 6 Hz - 30 kHz (+0, -1 dB)
• S/N Ratio, referred to highest rated power: > 110 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W: > 88.2 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: > 300 / 50 Hz
• Damping Factor @ 2 Ω: > 150 / 50 Hz
• THD+N @ Rated Power: < 0.03% @ 4 Ω per Ch.
• Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS to 800 mV - 8 V RMS
• Min. Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
