InCarTec FK-271FA-SWC Audi A3 8P Single Double Din Stereo Fitting Kit AMPED

Brand New

Complete fitting kit to install a single or double DIN head unit and retain the original steering wheel controls in an Audi A3 8P facelift with fully amplified speakers

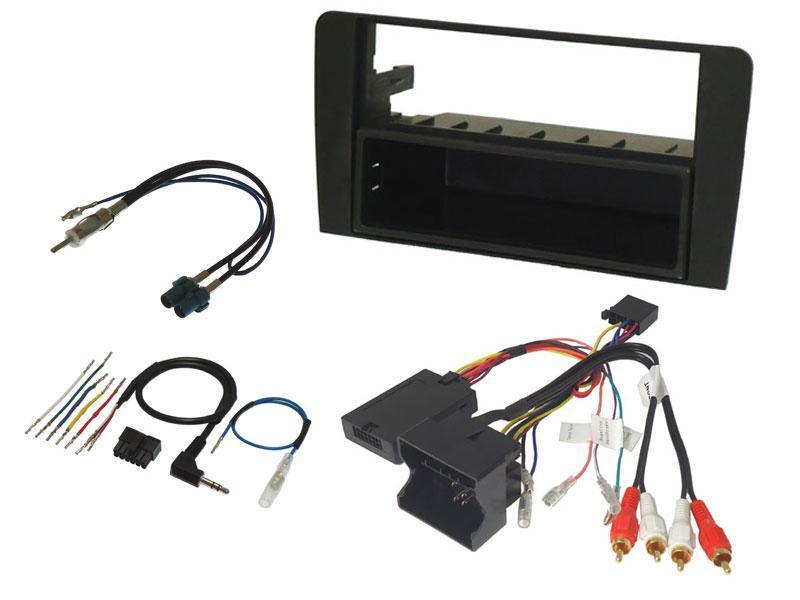

This kit includes:-Fascia-Steering wheel control interface-Universal patch lead-Antenna adapter

Matt black fascia adapter panel to allow the fitting of a single or double din head unit into the dashboard. Use the supplied pocket with the fascia adapter to fit a single din radio, or remove the pocket and use the fascia trim only to fit a double din aftermarket head unit. For double din installation the fascia takes a 113mm high cage, this is the size of cages supplied with all major brand head unit manufacturers.

The kit includes a plug and play Quadlock to ISO adapter harness to connect the new head unit to the original connectors in the car. The harness has a built in CANbus interface to retain the use of the audio steering wheel control buttons with the new aftermarket head unit.A universal patch lead is included to pair the interface with Alpine, Clarion, JVC, Kenwood, Pioneer and Sony head units.

The CANbus interface will also generate a key present ignition supply, illumination, speed pulse, reverse gear and handbrake output signals.

The plug and play ISO harness has phono audio connectors to connect the new head unit to the fully amplified audio system in the car. Using the pre out phono connectors allows the new head unit to work with original amplifier which drives all the speakers and the subwoofer. This kit is recommended for head units with 4V preouts, it will work with units with 2V preouts however the volume may be lower.

A double Fakra to DIN antenna adapter is also included and is already wired into the ISO harness.
