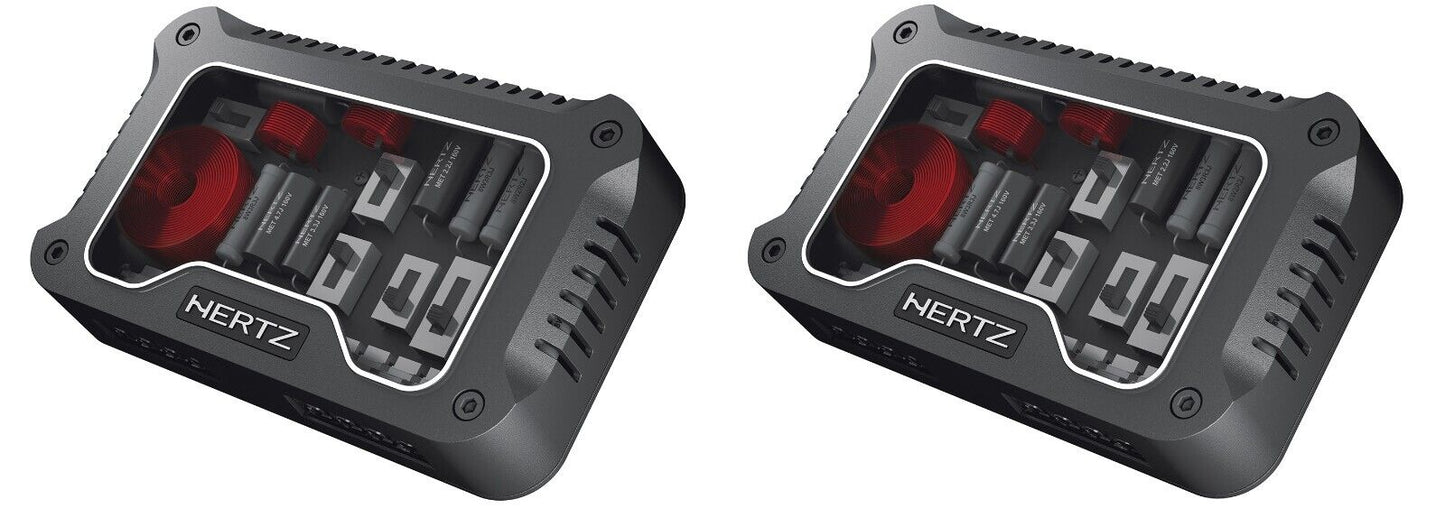

Hertz MLCX 2 TW.3 LEGEND Crossover 300 W

Hertz MLCX 2 TW.3 car audio crossover provides the ability to realize a bi-amplified system, that is, to connect two amplifiers, or anyway two separate channels, to the crossover, so making it possible to drive woofer and tweeter separately.

The significant power increase with this configuration highlights all the features of the MLK 1650.3 Legend system, with all the advantages coming from the multi-amplification.

Besides, thanks to the Mid-Contour and Hi-Contour controls, dedicated to the management of woofer cut-off frequency and tweeter cut-off frequency respectively, the cross-point can be varied.

Through each of these two Contour controls, featuring a two-position selector, the system frequency response can be fine-tuned, adjusting it according to the different acoustics of the cars and the different speaker placements and, most of all, the listener can achieve their favourite sound.

Technical Specs

ComponentCrossover

Power Handling - Peak W300

Power Handling - Peak Note150

Depth mm (in.)41 (1.68)

Adjustment

Tweeter +2 / 0 / -2 dB

Hi-Boost ON / OFF

Hi-Contour ON / OFF

Mid-Contour ON / OFF

Bi-Amp ON / OFF

Weight of one component - Crossover kg (lb)0,57 (1.26)

Crossover

Woofer Lo-pass 6 dB Oct.

Tweeter Hi-pass 12 dB Oct.

Cut-off 2.5 kHz (Mid/Hi-Cont. = ON)

3.5 kHz (Mid/Hi-Cont. = OFF) Please note - some items may incur extra shipping
